How to test RecyclerView items with Espresso

A RecyclerView can keep most rows outside the visible view hierarchy while its adapter binds only the cells currently on screen. Espresso tests need list-aware actions for that screen shape so a row can be found by content after scrolling, clicked, and asserted without depending on its starting position.

The espresso-contrib artifact provides RecyclerViewActions for scrolling to item matchers, acting on matched items, and using positions when an adapter index is the actual behavior under test. onData() belongs to AdapterView lists, not RecyclerView, so the test should target the list view and match a descendant view inside the row.

Use row content or a stable view ID when possible, because position-only checks can pass against the wrong data after sorting, filtering, or paging changes. The Kotlin test source belongs in the app module's androidTest source set and should finish with a connected test run on a device or emulator.

1. Add espresso-contrib to the app module's instrumented test dependencies.

   build.gradle.kts

   val espressoVersion = "3.7.0"

   dependencies {
       androidTestImplementation(
           "androidx.test.espresso:" +
               "espresso-core:$espressoVersion"
       )
       androidTestImplementation(
           "androidx.test.espresso:" +
               "espresso-contrib:$espressoVersion"
       )
   }

   Use the project's existing version catalog if it already manages AndroidX Test versions. Keep espresso-core and espresso-contrib on the same release.

   Related: How to configure an Android project for Espresso

2. Create a RecyclerView test class under src/androidTest.

   OrderListTest.kt

   package com.example.orders

   import android.view.View
   import androidx.recyclerview.widget.RecyclerView
   import androidx.test.espresso.Espresso.onView
   import androidx.test.espresso.action.ViewActions.click
   import androidx.test.espresso.assertion.ViewAssertions.matches
   import androidx.test.espresso.contrib.RecyclerViewActions
   import androidx.test.espresso.matcher.ViewMatchers.hasDescendant
   import androidx.test.espresso.matcher.ViewMatchers.isDescendantOfA
   import androidx.test.espresso.matcher.ViewMatchers.isDisplayed
   import androidx.test.espresso.matcher.ViewMatchers.withId
   import androidx.test.espresso.matcher.ViewMatchers.withText
   import androidx.test.ext.junit.rules.ActivityScenarioRule
   import androidx.test.ext.junit.runners.AndroidJUnit4
   import org.hamcrest.Matcher
   import org.hamcrest.Matchers.allOf
   import org.junit.Rule
   import org.junit.Test
   import org.junit.runner.RunWith

   @RunWith(AndroidJUnit4::class)
   class OrderListTest {

       @get:Rule
       val activityRule =
           ActivityScenarioRule(OrderListActivity::class.java)

       private fun orderRow(orderNumber: String): Matcher<View> =
           hasDescendant(withText(orderNumber))

       @Test
       fun opensOrderFromRecyclerView() {
           onView(withId(R.id.ordersRecyclerView))
               .perform(
                   RecyclerViewActions.scrollTo<RecyclerView.ViewHolder>(
                       orderRow("Order #1042")
                   )
               )

           onView(
               allOf(
                   withText("Order #1042"),
                   isDescendantOfA(withId(R.id.ordersRecyclerView))
               )
           ).check(matches(isDisplayed()))

           onView(withId(R.id.ordersRecyclerView))
               .perform(
                   RecyclerViewActions.actionOnItem<RecyclerView.ViewHolder>(
                       orderRow("Order #1042"),
                       click()
                   )
               )

           onView(withId(R.id.orderTitle))
               .check(matches(withText("Order #1042")))
       }
   }

   The matcher selects a row by its bound child text, and the detail assertion checks the record opened after the click.

3. Replace the sample activity, RecyclerView ID, row text, and detail assertion with values from the app.

   ActivityScenarioRule(MainActivity::class.java)

   withId(R.id.productsRecyclerView)

   orderRow("Espresso beans")

   onView(withId(R.id.productTitle))
       .check(matches(withText("Espresso beans")))

   If the row content appears only after paging, a network request, or a repository call finishes, synchronize that work before running the row action.
   Related: How to add an Espresso IdlingResource

4. Use a position action only when the adapter position is the behavior being tested.

   onView(withId(R.id.ordersRecyclerView))
       .perform(
           RecyclerViewActions.actionOnItemAtPosition<RecyclerView.ViewHolder>(
               3,
               click()
           )
       )

   Position-based checks can hide regressions when search, sorting, filtering, or paging changes the adapter order. Prefer a row-content matcher when the user-facing record matters.

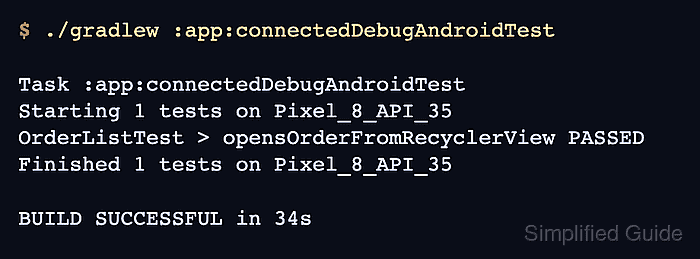

5. Run the connected Espresso test task on an emulator or device.

   $ ./gradlew :app:connectedDebugAndroidTest

   Task :app:connectedDebugAndroidTest
   Starting 1 tests on Pixel_8_API_35
   OrderListTest > opensOrderFromRecyclerView PASSED
   Finished 1 tests on Pixel_8_API_35

   BUILD SUCCESSFUL in 34s

   The module and variant control the task name. A successful connected run also writes an HTML report such as app/build/reports/androidTests/connected/debug/index.html.
