How to install the Checkmk agent on Linux

Installing the Checkmk agent on Linux adds the check_mk_agent script and the Agent Controller to a host so a Checkmk site can collect operating system, service, and hardware data. Use this package install path when adding a new Linux server to monitoring or replacing an older manually installed agent.

The agent package comes from the Checkmk site that will monitor the host. DEB packages are used on Debian and Ubuntu systems, while RPM packages are used on RHEL, SLES, Fedora, openSUSE, and similar distributions. The exact file name changes with the Checkmk version and CPU architecture.

On systemd hosts, the package enables the Agent Controller daemon and the agent socket. A first install can still expose unencrypted legacy pull mode until the host is registered with the Checkmk site, so restrict TCP port 6556 to the monitoring server and register the agent before treating the host as finished monitoring inventory.

1. Open a terminal on the Linux host with sudo privileges.
2. Confirm that systemd is available for the Agent Controller.

   $ systemctl --version
   systemd 259 (259.5-0ubuntu3)
   ##### snipped #####

   The Agent Controller needs systemd 219 or newer. Hosts without a usable systemd service manager must use the legacy Linux agent mode.

3. Check the host CPU architecture.

   $ uname -m
   aarch64

   Use an arm64 or aarch64 agent package on 64-bit ARM hosts. Use the all or noarch package on x86_64 hosts so the Agent Controller matches the CPU architecture.

4. Download the matching agent package from the Checkmk site.

   $ curl --output check-mk-agent.deb https://monitor.example.com/mysite/check_mk/agents/check-mk-agent_2.5.0p7-1_arm64.deb

   Copy the exact Linux package URL from Setup → Agents → Linux, from the host agent slideout, or from the equivalent Checkmk REST API download command. The sample URL uses a neutral host name, site name, version, and ARM package.

5. Install the DEB package on Debian or Ubuntu.

   $ sudo dpkg --install check-mk-agent.deb
   Selecting previously unselected package check-mk-agent.
   Preparing to unpack check-mk-agent.deb ...
   Unpacking check-mk-agent (2.5.0p7-1) ...
   Setting up check-mk-agent (2.5.0p7-1) ...
   Deploying agent controller: /usr/bin/cmk-agent-ctl
   Deploying systemd units: cmk-agent-ctl-daemon.service check-mk-agent-async.service check-mk-agent.socket check-mk-agent@.service
   Deployed systemd
   Creating/updating 'cmk-agent' user account ...
   WARNING: The agent controller is operating in an insecure mode! To secure the connection run `cmk-agent-ctl register`.
   Activating systemd unit 'cmk-agent-ctl-daemon.service'...
   Created symlink /etc/systemd/system/multi-user.target.wants/cmk-agent-ctl-daemon.service -> /usr/lib/systemd/system/cmk-agent-ctl-daemon.service.

   On an RPM based host, download the matching .rpm package and install it with sudo rpm -U check-mk-agent.rpm. The -U mode handles both first installs and later package updates.

6. Confirm that the Agent Controller binary runs.

   $ cmk-agent-ctl --version
   cmk-agent-ctl-lib 2.5.0p7

   If the shell reports an Exec format error, the installed package does not match the host CPU architecture.

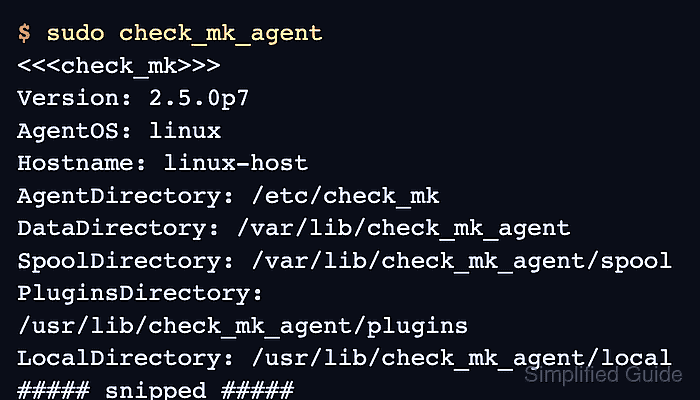

7. Check the local agent output.

   $ sudo check_mk_agent
   <<<check_mk>>>
   Version: 2.5.0p7
   AgentOS: linux
   Hostname: linux-host
   AgentDirectory: /etc/check_mk
   DataDirectory: /var/lib/check_mk_agent
   SpoolDirectory: /var/lib/check_mk_agent/spool
   PluginsDirectory: /usr/lib/check_mk_agent/plugins
   LocalDirectory: /usr/lib/check_mk_agent/local
   ##### snipped #####

8. Confirm that the agent socket is listening on TCP port 6556.

   $ sudo ss --tcp --listening --processes 'sport = :6556'
   State  Recv-Q Send-Q Local Address:Port Peer Address:Port Process
   LISTEN 0      1024   0.0.0.0:6556      0.0.0.0:*     users:(("cmk-agent-ctl",pid=1861810,fd=9))

   Before registration, legacy pull mode can expose unencrypted agent output on port 6556. Allow inbound access only from the Checkmk server and register the agent promptly.
   Related: How to register a Checkmk agent host

9. Test agent retrieval from the Checkmk site shell.

   OMD[mysite]:~$ cmk -d linux-host
   <<<check_mk>>>
   Version: 2.5.0p7
   AgentOS: linux
   Hostname: linux-host
   ##### snipped #####

   A working cmk -d result proves the site can retrieve agent data for the host. Continue with service discovery and activation after the host is registered.
   Related: How to run Checkmk service discovery
   Related: How to activate Checkmk pending changes
