How to create a systemd slice unit

A custom systemd slice groups related services or transient workloads under one cgroup branch so shared CPU, memory, and task limits can be applied in one place. That is useful when queue workers, batch jobs, or supporting daemons should compete inside the same resource budget instead of each unit carrying its own separate limits.

A *.slice unit creates a node in the Linux control-group tree, and services or scopes join it through the Slice= setting or through a transient launch such as systemd-run –slice=…. Current upstream systemd.slice documentation describes slice names as dash-separated paths in that hierarchy, so extra dashes create parent slices instead of acting as decorative separators.

Examples below use a top-level slice named workload.slice with CPUWeight=, MemoryMax=, and TasksMax= so the flow stays readable and safe to test. The commands target the system manager under /etc/systemd/system; for per-user slices, use /~/.config/systemd/user and systemctl --user instead. The slice intentionally stays static with no Install section because current upstream systemd.special guidance says adding custom slices to slices.target is usually unnecessary unless the slice itself must always be active after boot.

1. Open a terminal on the Linux host that runs systemd and choose a slice name that matches the hierarchy needed.

   A simple name such as workload.slice creates one top-level custom slice. Each extra dash adds another level in the slice path, so apps-web.slice is nested below apps.slice rather than being a flat name.

2. Create the slice unit file under /etc/systemd/system.

   [Unit]
   Description=Workload resource slice

   [Slice]
   CPUWeight=200
   MemoryMax=500M
   TasksMax=64

   CPUWeight= controls relative CPU scheduling weight, MemoryMax= sets a hard memory limit, and TasksMax= caps the number of tasks that units inside the slice may create. Adjust the values to match the real workload.

3. Verify that the unit file parses cleanly before reloading the manager.

   $ sudo systemd-analyze verify /etc/systemd/system/workload.slice

   No output means systemd accepted the unit syntax. This is the quickest way to catch parser errors before the definition is loaded into the manager state.

4. Reload the systemd manager so the new slice definition is available.

   $ sudo systemctl daemon-reload

   This rereads the unit files from disk and rebuilds the dependency graph around the new slice unit.

   Related: How to reload the systemd manager configuration

5. Confirm that the slice definition is loaded before assigning a workload to it.

   $ systemctl show -p LoadState -p ActiveState -p SubState workload.slice
   LoadState=loaded
   ActiveState=inactive
   SubState=dead

   inactive (dead) is normal here because the slice exists but no service or scope is using it yet.

   A custom slice with no Install section typically appears as static in status output. That is normal for an on-demand slice that should activate only when a workload is placed in it.

6. Start a safe test workload inside the new slice.

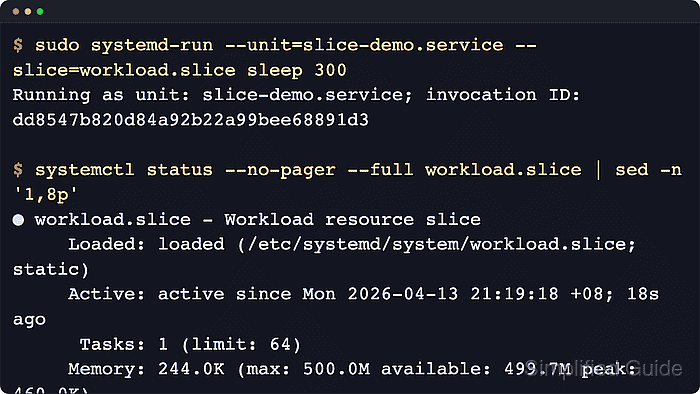

   $ sudo systemd-run --unit=slice-demo.service --slice=workload.slice sleep 300
   Running as unit: slice-demo.service; invocation ID: dd8547b820d84a92b22a99bee68891d3

   systemd-run creates a transient service so the slice can be verified without editing a production unit first.

   Current upstream systemd.special guidance says the slice starts automatically when a unit using Slice= is activated, so a separate systemctl enable or always-active slices.target link is not required for this test flow.

7. Confirm that the test service is running and attached to the expected slice.

   $ systemctl show -p ActiveState -p SubState slice-demo.service
   ActiveState=active
   SubState=running

   $ systemctl show -p Slice slice-demo.service
   Slice=workload.slice

   The second command is the direct proof that the transient service joined the custom slice instead of the default system.slice.

8. Inspect the applied resource controls and the human-readable slice status.

   $ systemctl show -p CPUWeight -p MemoryMax -p TasksMax workload.slice
   CPUWeight=200
   MemoryMax=524288000
   TasksMax=64

   $ systemctl status --no-pager --full workload.slice | sed -n '1,12p'
   ● workload.slice - Workload resource slice
        Loaded: loaded (/etc/systemd/system/workload.slice; static)
        Active: active since Mon 2026-04-13 21:19:18 +08; 18s ago
         Tasks: 1 (limit: 64)
        Memory: 244.0K (max: 500.0M available: 499.7M peak: 460.0K)
           CPU: 1ms
        CGroup: /workload.slice
                └─slice-demo.service
                  └─1636 /usr/bin/sleep 300

   systemctl show returns the normalized property values, so MemoryMax prints bytes. The status view is easier for human inspection because it also shows the current task count, memory usage, and the child service tree.

   Related: How to check service status using systemctl

9. Stop the disposable test service after validation, or point a real service at the new slice next.

   $ sudo systemctl stop slice-demo.service

   For a permanent assignment, set Slice=workload.slice in the real service unit or a drop-in override, then run sudo systemctl daemon-reload and restart that service so the new cgroup placement takes effect.
