How to configure Snort detection_filter thresholds

High-volume Snort rules can create alert noise when one host repeats the same match many times. detection_filter keeps a rule quiet until the same source or destination crosses a hit count inside a time window, which fits burst probes, repeated payload attempts, and other rate-shaped detections.

In Snort 3, detection_filter is a post-detection rule option rather than a global event policy. Snort evaluates the rule header and payload options first, then applies the filter before generating an event. Only one detection_filter option belongs in a rule.

Use by_src when the repeated behavior belongs to the client or attacker address. Use by_dst when the protected destination should own the count, such as a server receiving repeated attempts from many sources. Validate the edited rule and replay representative traffic before deploying the threshold to a running sensor.

1. Confirm the detection_filter option syntax in the installed Snort build.

   $ snort --help-module detection_filter

   detection_filter


   Help: rule option to require multiple hits before a rule generates an event

   Type: ips_option

   Usage: detect

   Configuration:

   enum detection_filter.track: track hits by source or destination IP address { 'by_src' | 'by_dst' }
   int detection_filter.count: hits in interval before allowing the rule to fire { 1:max32 }
   int detection_filter.seconds: length of interval to count hits { 1:max32 }

2. Choose the tracking side and time window for the rule.

   count 3,seconds 10 means three matching hits are counted inside ten seconds before a later matching hit can generate an event.

3. Open the local rule file.

   $ sudo vi /usr/local/etc/snort/rules/local.rules

   Related: How to create a local Snort rule

4. Add detection_filter to the rule options.

   alert udp any any -> any 31338 (msg:"LOCAL UDP detection_filter test"; content:"BURST"; detection_filter:track by_src,count 3,seconds 10; sid:1000002; rev:1;)

   by_src groups the hits by source IP address. Use by_dst when repeated attempts against the same destination should share one threshold.

5. Validate the configuration and local rule file.

   $ sudo snort -c /usr/local/etc/snort/snort.lua \
       -R /usr/local/etc/snort/rules/local.rules -T
   Loading /usr/local/etc/snort/snort.lua:
   ##### snipped #####
   Loading /usr/local/etc/snort/rules/local.rules:
   Finished /usr/local/etc/snort/rules/local.rules:
   ##### snipped #####
   Snort successfully validated the configuration (with 0 warnings).
   o")~   Snort exiting

   Related: How to test Snort configuration

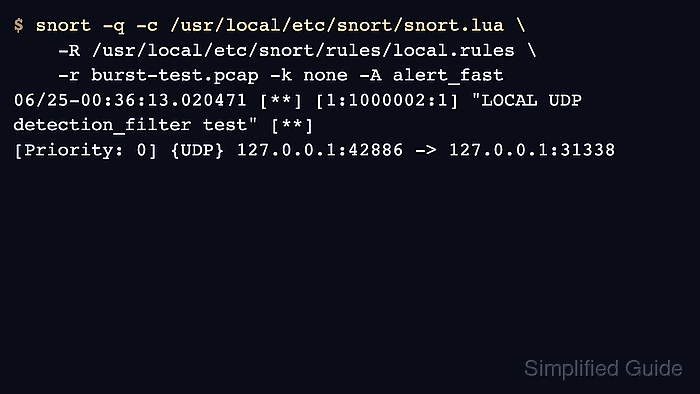

6. Replay traffic that crosses the threshold.

   $ sudo snort -q -c /usr/local/etc/snort/snort.lua \
       -R /usr/local/etc/snort/rules/local.rules \
       -r burst-test.pcap -k none -A alert_fast

   Use a pcap with more matching packets than count. A pcap with four matching packets should produce one alert when count is 3.
   Related: How to run Snort against a packet capture

7. Confirm the thresholded alert appears.

   06/25-00:36:13.020471 [**] [1:1000002:1] "LOCAL UDP detection_filter test" [**] [Priority: 0] {UDP} 127.0.0.1:42886 -> 127.0.0.1:31338

8. Tune count and seconds with representative traffic.

   A threshold that is too low still floods alerts. A threshold that is too high can hide low-and-slow activity.
