Packet-capture replay lets a Snort sensor inspect traffic from an incident, lab test, or rule change without waiting for the packets to appear again on an interface. Reading a saved pcap keeps the live sensor out of the test path while still exercising the rule, decoder, DAQ, and alert logger that matter for detection.
Snort 3 reads capture files with the pcap DAQ when -r points at a pcap. A source-build layout normally uses /usr/local/etc/snort/snort.lua for the Lua configuration, and -R can add a local rule file for focused replay tests.
Use a pcap that should contain the traffic your rule expects. Loopback-generated captures often carry checksum metadata that Snort would otherwise reject, so -k none belongs on lab replay commands only when the capture source needs that exception.
Related: How to test a Snort rule
Related: How to view Snort alert logs
Steps to run Snort against a packet capture:
- Confirm that the pcap file is readable.
$ ls -lh udp-test.pcap -rw-r--r-- 1 analyst analyst 92 Jun 25 01:56 udp-test.pcap
- Inspect the packet payload when the replay should trigger a specific content rule.
$ tcpdump -nn -XX -r udp-test.pcap reading from file udp-test.pcap, link-type EN10MB (Ethernet), snapshot length 262144 01:56:33.941429 IP 127.0.0.1.58852 > 127.0.0.1.31337: UDP, length 10 0x0000: 0000 0000 0000 0000 0000 0000 0800 4500 ..............E. 0x0010: 0026 e92e 4000 4011 5396 7f00 0001 7f00 .&..@.@.S....... 0x0020: 0001 e5e4 7a69 0012 fe25 534e 4f52 5454 ....zi...%SNORTT 0x0030: 4553 540a EST.
- Validate the Snort configuration and local rule file.
$ sudo snort -c /usr/local/etc/snort/snort.lua \ -R /usr/local/etc/snort/rules/local.rules -T -------------------------------------------------- o")~ Snort++ 3.12.2.0 -------------------------------------------------- Loading /usr/local/etc/snort/snort.lua: ##### snipped ##### Loading /usr/local/etc/snort/rules/local.rules: Finished /usr/local/etc/snort/rules/local.rules: ##### snipped ##### rule counts total rules loaded: 220 text rules: 220 option chains: 220 chain headers: 2 ##### snipped ##### pcap DAQ configured to passive. Snort successfully validated the configuration (with 0 warnings). o")~ Snort exiting
Use -q only when automation checks the exit status, because it suppresses the normal validation transcript.
Related: How to test Snort configuration - Run Snort against the pcap with fast alerts on stdout.

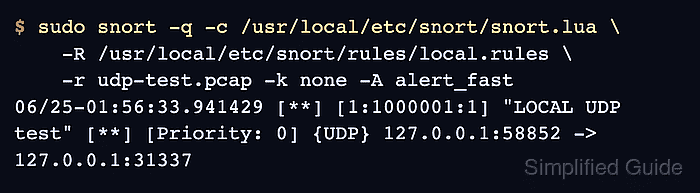

$ sudo snort -q -c /usr/local/etc/snort/snort.lua \ -R /usr/local/etc/snort/rules/local.rules \ -r udp-test.pcap -k none -A alert_fast 06/25-01:56:33.941429 [**] [1:1000001:1] "LOCAL UDP test" [**] [Priority: 0] {UDP} 127.0.0.1:58852 -> 127.0.0.1:31337
-r selects pcap readback. Use -k none only for captures with checksum metadata that blocks the lab packet from matching.
- Create the alert log directory when replay evidence should be saved.
$ sudo install -d -m 0755 /var/log/snort
- Replay the pcap with the fast alert logger set to file output.
$ sudo snort -q -c /usr/local/etc/snort/snort.lua \ -R /usr/local/etc/snort/rules/local.rules \ -r udp-test.pcap -k none -A alert_fast \ --lua 'alert_fast = { file = true }' \ -l /var/log/snort
alert_fast prints to stdout by default. Setting alert_fast.file to true writes the same compact alert format to /var/log/snort/alert_fast.txt.
Related: How to view Snort alert logs - Read the saved alert file.
$ sudo cat /var/log/snort/alert_fast.txt 06/25-01:56:33.941429 [**] [1:1000001:1] "LOCAL UDP test" [**] [Priority: 0] {UDP} 127.0.0.1:58852 -> 127.0.0.1:31337
- Confirm packet and detection counters without quiet mode.
$ sudo snort -c /usr/local/etc/snort/snort.lua \ -R /usr/local/etc/snort/rules/local.rules \ -r udp-test.pcap -k none -A alert_fast ##### snipped ##### pcap DAQ configured to read-file. Commencing packet processing ++ [0] udp-test.pcap 06/25-01:56:33.941429 [**] [1:1000001:1] "LOCAL UDP test" [**] [Priority: 0] {UDP} 127.0.0.1:58852 -> 127.0.0.1:31337 -- [0] udp-test.pcap -------------------------------------------------- Packet Statistics -------------------------------------------------- daq pcaps: 1 received: 1 analyzed: 1 allow: 1 rx_bytes: 52 -------------------------------------------------- codec total: 1 (100.000%) eth: 1 (100.000%) ipv4: 1 (100.000%) udp: 1 (100.000%) ##### snipped ##### detection analyzed: 1 raw_searches: 1 pkt_searches: 1 alerts: 1 total_alerts: 1 logged: 1 -------------------------------------------------- ips_actions alert: 1 ##### snipped ##### o")~ Snort exiting
Use this non-quiet run when an alert is missing or when the evidence must show that Snort received, decoded, inspected, and logged the pcap traffic.
Related: How to read Snort run statistics
