How to run JMeter in GitHub Actions

Continuous integration is a good place to run a small JMeter smoke test before a load script becomes part of a release gate. GitHub Actions can start a saved .jmx plan on an Ubuntu runner, keep the sampler results with the workflow run, and give reviewers one place to inspect the CI evidence.

A GitHub Actions job can cache the extracted Apache JMeter directory, prepare Java, and run JMeter in non-GUI mode. The run writes a .jtl result file, a dedicated jmeter.log file, and a static HTML dashboard directory before the artifact upload step collects them.

Keep the first CI version small enough for pull-request feedback. A smoke-sized plan with assertions and a short thread count belongs in GitHub Actions; sustained load, production traffic, and long soak tests should run from runners or load agents sized for that traffic.

1. Save the non-GUI test plan in the repository.

   Repository file: tests/load/checkout-smoke.jmx
   JMeter artifact directory: results/

   Build and debug the .jmx plan outside CI first, then commit the version that can run without visual listeners or local-only paths.

2. Create .github/workflows/jmeter-smoke.yml.

   name: JMeter smoke

   on:
     workflow_dispatch:
     pull_request:

   permissions:
     contents: read

   env:
     JMETER_VERSION: 5.6.3

   jobs:
     jmeter:
       runs-on: ubuntu-latest
       timeout-minutes: 15
       steps:
         - name: Check out repository
           uses: actions/checkout@v6

         - name: Set up Java
           uses: actions/setup-java@v4
           with:
             distribution: temurin
             java-version: '21'

         - name: Cache Apache JMeter
           id: cache-jmeter
           uses: actions/cache@v4
           with:
             path: ~/.jmeter/apache-jmeter-5.6.3
             key: ubuntu-jmeter-5.6.3

         - name: Install Apache JMeter
           if: steps.cache-jmeter.outputs.cache-hit != 'true'
           run: |
             mkdir -p "$HOME/.jmeter"
             curl --location --fail --show-error \
               --output /tmp/apache-jmeter.tgz \
               "https://archive.apache.org/dist/jmeter/binaries/apache-jmeter-${JMETER_VERSION}.tgz"
             tar --extract --gzip \
               --file /tmp/apache-jmeter.tgz \
               --directory "$HOME/.jmeter"

         - name: Add JMeter to PATH
           run: echo "$HOME/.jmeter/apache-jmeter-${JMETER_VERSION}/bin" >> "$GITHUB_PATH"

         - name: Run JMeter smoke test
           run: |
             mkdir -p results/dashboard
             jmeter -n \
               -t tests/load/checkout-smoke.jmx \
               -l results/checkout-smoke.jtl \
               -j results/jmeter.log \
               -e \
               -o results/dashboard

         - name: Upload JMeter results
           if: always()
           uses: actions/upload-artifact@v4
           with:
             name: jmeter-results
             path: |
               results/checkout-smoke.jtl
               results/jmeter.log
               results/dashboard
             retention-days: 14

   The pinned JMETER_VERSION value, cache path, and cache key must change together when moving to another JMeter release.

3. Review the cache path before committing the workflow.

   Cache path: ~/.jmeter/apache-jmeter-5.6.3
   Cache key: ubuntu-jmeter-5.6.3

   Do not cache tokens, SSH keys, environment files, or repository secrets.
   Tool: GitHub Actions Cache Config Generator

4. Stage the workflow and test plan.

   $ git add .github/workflows/jmeter-smoke.yml tests/load/checkout-smoke.jmx

5. Commit the workflow change.

   $ git commit -m "Run JMeter smoke test in GitHub Actions"

6. Push the branch to GitHub.

   $ git push origin jmeter-smoke

7. Start the JMeter smoke workflow from the Actions tab or open a pull request from the pushed branch.

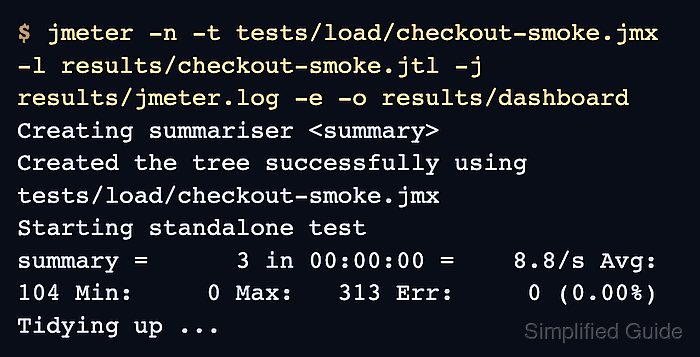

8. Open the Run JMeter smoke test step in the workflow log.

   Run jmeter -n \
     -t tests/load/checkout-smoke.jmx \
     -l results/checkout-smoke.jtl \
     -j results/jmeter.log \
     -e \
     -o results/dashboard
   Creating summariser <summary>
   Created the tree successfully using tests/load/checkout-smoke.jmx
   Starting standalone test
   summary +      1 in 00:00:00 =    3.0/s Avg:   313 Min:   313 Max:   313 Err:     0 (0.00%) Active: 1 Started: 1 Finished: 0
   summary +      2 in 00:00:00 =  500.0/s Avg:     0 Min:     0 Max:     1 Err:     0 (0.00%) Active: 0 Started: 1 Finished: 1
   summary =      3 in 00:00:00 =    8.8/s Avg:   104 Min:     0 Max:   313 Err:     0 (0.00%)
   Tidying up ...
   ... end of run

   A zero process status confirms that the JMeter engine finished. The Err count and .jtl rows still need review because sampler failures are workload evidence, not repository setup evidence.

9. Download the jmeter-results artifact and list the saved files.

   $ ls -R results
   results:
   checkout-smoke.jtl
   dashboard
   jmeter.log

   results/dashboard:
   content
   index.html
   sbadmin2-1.0.7
   statistics.json

   results/dashboard/content:
   css
   js
   pages
   ##### snipped #####

   The artifact should include the raw result file, jmeter.log, and results/dashboard/index.html so the run can be reviewed after the runner is gone.

10. Check the downloaded .jtl file for failed samples.

    $ cat results/checkout-smoke.jtl
    timeStamp,elapsed,label,responseCode,responseMessage,threadName,dataType,success,failureMessage,bytes,sentBytes,grpThreads,allThreads,URL,Latency,IdleTime,Connect
    1782774482785,313,checkout-smoke,200,OK,Thread Group 1-1,text,true,,21,0,1,1,null,0,0,0
    1782774483099,1,checkout-smoke,200,OK,Thread Group 1-1,text,true,,21,0,1,1,null,0,0,0
    1782774483100,0,checkout-smoke,200,OK,Thread Group 1-1,text,true,,21,0,1,1,null,0,0,0

    The success column should show true for each accepted smoke sample. Add a parser or assertion gate if the workflow must fail automatically when any row is false.
