A Hyperledger Fabric BFT ordering service uses SmartBFT consensus to order channel transactions when the ordering set must tolerate Byzantine behavior. Configuring it requires both channel-level BFT metadata and local orderer cluster settings so every consenter can identify the other orderers by enrollment identity and TLS material.
SmartBFT is available only on Fabric v3-capable channels. The channel profile needs V3_0 enabled, OrdererType set to BFT, a SmartBFT tuning section, and a ConsenterMapping entry for each ordering node that participates in the channel.
Start with orderer MSP folders, enrollment certificates, TLS certificates, admin endpoints, and routable hostnames already prepared. configtxgen can prove that the channel genesis block encodes the BFT configuration before orderer administrators join the channel through the channel participation API.
Steps to configure a Hyperledger Fabric BFT ordering service:
- Confirm the Fabric configuration tools are v3.x.
$ configtxgen --version configtxgen: Version: v3.1.5 ##### snipped #####
SmartBFT requires Fabric v3.0 channel capability. Upgrade every peer and orderer that participates in the channel before enabling V3_0.
- Enable the V3_0 channel capability in configtx.yaml.
Capabilities: Channel: &ChannelCapabilities V3_0: true
Do not enable V3_0 on a mixed-version channel. Older Fabric binaries must stop processing a channel whose enabled capabilities they do not support.
- Add every BFT orderer endpoint to the orderer organization definition.
Organizations: - &OrdererOrg Name: OrdererOrg ID: OrdererMSP MSPDir: ../organizations/ordererOrganizations/example.com/msp OrdererEndpoints: - orderer.example.com:7050 - orderer2.example.com:7052 - orderer3.example.com:7056 - orderer4.example.com:7058
Keep the endpoint list aligned with the BFT consenter mapping. In Fabric v3 BFT profiles, peers and clients discover orderers through organization endpoints instead of a legacy global Orderer.Addresses list.
- Set the channel profile to use the BFT orderer type and SmartBFT options.
Profiles: ChannelUsingBFT: <<: *ChannelDefaults Orderer: <<: *OrdererDefaults Organizations: - *OrdererOrg Capabilities: *OrdererCapabilities OrdererType: BFT SmartBFT: RequestBatchMaxCount: 100 RequestBatchMaxInterval: 50ms RequestForwardTimeout: 2s RequestComplainTimeout: 20s RequestAutoRemoveTimeout: 3m0s ViewChangeResendInterval: 5s ViewChangeTimeout: 20s LeaderHeartbeatTimeout: 1m0s CollectTimeout: 1s RequestBatchMaxBytes: 10485760 IncomingMessageBufferSize: 200 RequestPoolSize: 100000 LeaderHeartbeatCount: 10
RequestPoolSize is not a dynamic BFT setting. Changing it later requires restarting the affected orderer nodes.
- Add one ConsenterMapping entry for each BFT orderer in the same profile.
ConsenterMapping: - ID: 1 Host: orderer.example.com Port: 7050 MSPID: OrdererMSP Identity: ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/msp/signcerts/orderer.example.com-cert.pem ClientTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt ServerTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt - ID: 2 Host: orderer2.example.com Port: 7052 MSPID: OrdererMSP Identity: ../organizations/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/signcerts/orderer2.example.com-cert.pem ClientTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt ServerTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt - ID: 3 Host: orderer3.example.com Port: 7056 MSPID: OrdererMSP Identity: ../organizations/ordererOrganizations/example.com/orderers/orderer3.example.com/msp/signcerts/orderer3.example.com-cert.pem ClientTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt ServerTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/server.crt - ID: 4 Host: orderer4.example.com Port: 7058 MSPID: OrdererMSP Identity: ../organizations/ordererOrganizations/example.com/orderers/orderer4.example.com/msp/signcerts/orderer4.example.com-cert.pem ClientTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt ServerTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/server.crt
Identity points to the orderer's enrollment certificate in PEM format, not to the whole MSP directory. BFT clusters need at least 3F+1 consenters to tolerate F Byzantine failures, so four orderers tolerate one faulty orderer.
- Set the local orderer configuration for each node.
General: ListenAddress: 0.0.0.0 ListenPort: 7050 LocalMSPID: OrdererMSP LocalMSPDir: /var/hyperledger/orderer/msp TLS: Enabled: true PrivateKey: /var/hyperledger/orderer/tls/server.key Certificate: /var/hyperledger/orderer/tls/server.crt RootCAs: - /var/hyperledger/orderer/tls/ca.crt Cluster: ClientCertificate: /var/hyperledger/orderer/tls/server.crt ClientPrivateKey: /var/hyperledger/orderer/tls/server.key RootCAs: - /var/hyperledger/orderer/tls/ca.crt Admin: ListenAddress: 0.0.0.0:7053 TLS: Enabled: true Certificate: /var/hyperledger/orderer/tls/server.crt PrivateKey: /var/hyperledger/orderer/tls/server.key ClientAuthRequired: true ClientRootCAs: - /var/hyperledger/orderer/tls/ca.crt ChannelParticipation: Enabled: true Consensus: WALDir: /var/hyperledger/production/orderer/smartbft/wal
If the cluster traffic uses a separate listener, set General.Cluster.ListenPort, ListenAddress, ServerCertificate, and ServerPrivateKey together. Leave them unset when the cluster should share the orderer's main listener.
- Generate the BFT channel genesis block.

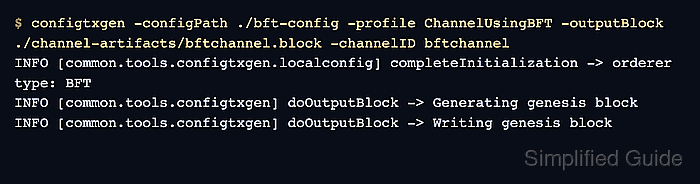

$ configtxgen -configPath ./bft-config -profile ChannelUsingBFT -outputBlock ./channel-artifacts/bftchannel.block -channelID bftchannel INFO [common.tools.configtxgen.localconfig] completeInitialization -> orderer type: BFT INFO [common.tools.configtxgen] doOutputBlock -> Generating genesis block INFO [common.tools.configtxgen] doOutputBlock -> Writing genesis block
The -configPath directory must contain the configtx.yaml file with the ChannelUsingBFT profile and every certificate path referenced by ConsenterMapping.
- Inspect the generated block for the BFT consensus type, SmartBFT metadata, consenter mapping, and channel capability.
$ configtxgen -inspectBlock ./channel-artifacts/bftchannel.block { "channel_group": { "groups": { "Orderer": { "values": { "ConsensusType": { "value": { "type": "BFT", "metadata": { "request_batch_max_count": "100", "request_pool_size": "100000", "leader_heartbeat_timeout": "1m0s" } } }, "Orderers": { "value": { "consenter_mapping": [ {"id": 1, "host": "orderer.example.com", "port": 7050, "msp_id": "OrdererMSP"}, {"id": 2, "host": "orderer2.example.com", "port": 7052, "msp_id": "OrdererMSP"}, {"id": 3, "host": "orderer3.example.com", "port": 7056, "msp_id": "OrdererMSP"}, {"id": 4, "host": "orderer4.example.com", "port": 7058, "msp_id": "OrdererMSP"} ] } } } } }, "values": { "Capabilities": { "value": { "capabilities": { "V3_0": {} } } } } } } ##### snipped #####The full inspection output also includes MSP and certificate bytes. Review the structure, not the generated base64 certificate payloads.
- Start all BFT orderers with their local configuration.
$ orderer
Containerized deployments normally set the same orderer.yaml keys with ORDERER_ environment variables. Keep each orderer's listener port, admin port, mounted MSP, and mounted TLS material matched to its ConsenterMapping entry.
- Join each running orderer to the BFT channel through its admin endpoint.
$ osnadmin channel join \ -o orderer.example.com:7053 \ --ca-file "$ORDERER_ADMIN_CA" \ --client-cert "$ORDERER_ADMIN_CLIENT_CERT" \ --client-key "$ORDERER_ADMIN_CLIENT_KEY" \ --channelID bftchannel \ --config-block ./channel-artifacts/bftchannel.block Status: 201 { "name": "bftchannel", "url": "/participation/v1/channels/bftchannel", "consensusRelation": "consenter", "status": "active", "height": 1 }Run the join command once per orderer admin endpoint, changing -o and the admin TLS files for that orderer.
- Check the joined channel state on an orderer.
$ osnadmin channel list \ -o orderer.example.com:7053 \ --ca-file "$ORDERER_ADMIN_CA" \ --client-cert "$ORDERER_ADMIN_CLIENT_CERT" \ --client-key "$ORDERER_ADMIN_CLIENT_KEY" \ --channelID bftchannel Status: 200 { "name": "bftchannel", "url": "/participation/v1/channels/bftchannel", "consensusRelation": "consenter", "status": "active", "height": 3 }consenter and active confirm that the orderer joined as a voting BFT consenter for the channel.
- Invoke an existing smoke-test chaincode through a BFT orderer endpoint after peers and chaincode are ready.
$ peer chaincode invoke \ -o orderer.example.com:7050 \ --ordererTLSHostnameOverride orderer.example.com \ --tls --cafile "$ORDERER_TLS_CA" \ -C bftchannel -n basic \ --peerAddresses peer0.org1.example.com:7051 --tlsRootCertFiles "$ORG1_PEER_TLS_CA" \ --peerAddresses peer0.org2.example.com:9051 --tlsRootCertFiles "$ORG2_PEER_TLS_CA" \ -c '{"function":"CreateAsset","Args":["asset-bft","blue","5","ops-team","100"]}' INFO [chaincodeCmd] chaincodeInvokeOrQuery -> Chaincode invoke successful. result: status:200A successful transaction through one of the mapped BFT orderer endpoints proves the channel can order client traffic after the configuration is joined.
