How to use a Sentence Transformers ranker in Haystack

Haystack retrieval pipelines often need a reranking pass when the first retriever returns several plausible documents. A Sentence Transformers ranker scores each candidate against the query with a cross-encoder model, so a search or RAG pipeline can put the most relevant document first before it sends context downstream.

The SentenceTransformersSimilarityRanker component lives in the sentence-transformers-haystack integration package. It receives candidate documents from a retriever and the same query string through Pipeline.run(), then returns Document objects sorted by ranker score.

An InMemoryBM25Retriever dataset makes the reranking boundary visible without requiring a vector database. The retriever top_k value controls the candidate pool sent to the cross-encoder, and the ranker top_k value controls how many scored documents leave the final component.

1. Install the Sentence Transformers Haystack integration in the active Python environment.

   $ python3 -m pip install --upgrade sentence-transformers-haystack
   ##### snipped #####
   Successfully installed sentence-transformers-5.6.0 sentence-transformers-haystack-0.1.0

   The integration package installs haystack-ai, sentence-transformers, transformers, and torch dependencies when they are missing. Use a virtual environment when the project should not share Python packages with the system interpreter.
   Related: How to create a virtualenv for Haystack
   Related: How to install Haystack with pip

2. Check the ranker import path and default model.

   $ python3 - <<'PY'
   from haystack_integrations.components.rankers.sentence_transformers import (
       SentenceTransformersSimilarityRanker,
   )

   ranker = SentenceTransformersSimilarityRanker(top_k=2)
   print(type(ranker).__name__)
   print(ranker.model)
   print(ranker.top_k)
   PY
   SentenceTransformersSimilarityRanker
   cross-encoder/ms-marco-MiniLM-L-6-v2
   2

   Pass a different model value only when the project has a tested cross-encoder model for its language, domain, or latency target.

3. Create a query pipeline script that places the ranker after a BM25 retriever.

   $ cat > haystack-ranker.py <<'PY'
   from haystack import Document, Pipeline
   from haystack.components.retrievers.in_memory import InMemoryBM25Retriever
   from haystack.document_stores.in_memory import InMemoryDocumentStore
   from haystack_integrations.components.rankers.sentence_transformers import (
       SentenceTransformersSimilarityRanker,
   )

   query = "What is the capital city of Germany?"

   documents = [
       Document(content="Munich is a city in Germany.", meta={"name": "munich"}),
       Document(content="Berlin is the capital of Germany.", meta={"name": "berlin"}),
       Document(content="Paris is the capital of France.", meta={"name": "paris"}),
       Document(content="Tokyo is the capital of Japan.", meta={"name": "tokyo"}),
   ]

   document_store = InMemoryDocumentStore()
   document_store.write_documents(documents)

   retriever = InMemoryBM25Retriever(document_store=document_store, top_k=4)
   ranker = SentenceTransformersSimilarityRanker(top_k=2)

   pipeline = Pipeline()
   pipeline.add_component("retriever", retriever)
   pipeline.add_component("ranker", ranker)
   pipeline.connect("retriever.documents", "ranker.documents")

   retriever_result = retriever.run(query=query)
   print("Retriever order:")
   for document in retriever_result["documents"]:
       print(f"- {document.meta['name']}: {document.content}")

   result = pipeline.run(
       {
           "retriever": {"query": query},
           "ranker": {"query": query},
       }
   )

   print()
   print("Reranked top 2:")
   for document in result["ranker"]["documents"]:
       print(f"- {document.meta['name']}: {document.score:.4f} | {document.content}")

   top_document = result["ranker"]["documents"][0]
   assert top_document.meta["name"] == "berlin"

   print()
   print(f"Final top document: {top_document.meta['name']}")
   PY

   The first run downloads the cross-encoder model unless it is already cached. Private Hugging Face models need an HF_TOKEN or HF_API_TOKEN environment variable.

4. Run the pipeline script.

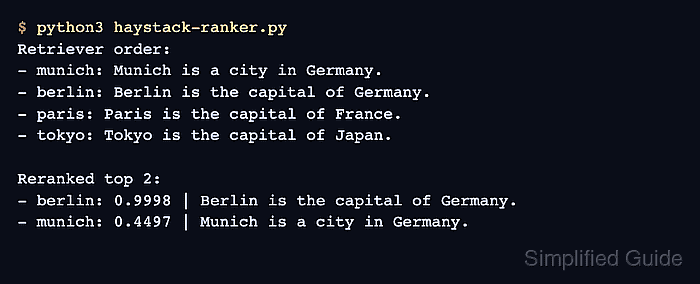

   $ python3 haystack-ranker.py
   Retriever order:
   - munich: Munich is a city in Germany.
   - berlin: Berlin is the capital of Germany.
   - paris: Paris is the capital of France.
   - tokyo: Tokyo is the capital of Japan.

   Reranked top 2:
   - berlin: 0.9998 | Berlin is the capital of Germany.
   - munich: 0.4497 | Munich is a city in Germany.

   Final top document: berlin

   Small score differences can appear across model and runtime versions. The important signal is that the ranker output returns berlin first and limits the final list to two documents.
