How to ingest logs from Filebeat through Logstash into Elasticsearch

Routing Filebeat events through Logstash adds a controlled processing hop before data lands in Elasticsearch, enabling parsing, enrichment, and conditional routing without changing log sources.

Filebeat ships events over the Beats protocol to a Logstash Beats input (commonly TCP/5044), Logstash pipelines transform events with filters, and the Elasticsearch output indexes the results using bulk requests.

Index or data stream naming, TLS, and authentication must align across all three components; a mismatched name or insufficient Elasticsearch privileges will reject events, while unencrypted Beats traffic exposes log content on the network.

1. Create the target index or data stream in Elasticsearch.

   $ curl --silent --request PUT "http://localhost:9200/logs-filebeat?pretty"
   {
     "acknowledged" : true,
     "shards_acknowledged" : true,
     "index" : "logs-filebeat"
   }

   Keep the index name consistent across steps, and add authentication options to curl when Elasticsearch security is enabled.

   Related: How to create an index in Elasticsearch
   Related: How to create a data stream in Elasticsearch

2. Configure a Logstash pipeline with a Beats input and Elasticsearch output.

   input {
     beats {
       port => 5047
     }
   }

   filter {
   }

   output {
     elasticsearch {
       hosts => ["http://elasticsearch.example.net:9200"]
       index => "logs-filebeat"
       manage_template => false
     }
   }

   Set TLS and credentials in the elasticsearch output when Elasticsearch security is enabled.

   Related: How to configure a Logstash Beats input
   Related: How to configure Logstash output to Elasticsearch

3. Test the Logstash pipeline configuration for syntax errors.

   $ sudo -u logstash /usr/share/logstash/bin/logstash --path.settings /etc/logstash --path.data /tmp/logstash-configtest --config.test_and_exit
   Configuration OK

   A failed validation prevents Logstash from starting and blocks Filebeat connections.

4. Restart the Logstash service to load the updated pipeline.

   $ sudo systemctl restart logstash

   Related: How to manage the Logstash service with systemctl in Linux

5. Point Filebeat output to Logstash.

   #output.elasticsearch:
   #  hosts: ["http://localhost:9200"]

   output.logstash:
     hosts: ["localhost:5047"]

   Keep only one Filebeat output enabled, and enable at least one Filebeat input or module so events are produced.

   Related: How to configure Filebeat output to Logstash

6. Test the Filebeat configuration for errors.

   $ sudo filebeat test config -c /etc/filebeat/filebeat.yml
   Config OK

7. Test the Filebeat output connection to Logstash.

   $ sudo filebeat test output -c /etc/filebeat/filebeat.yml
   logstash: localhost:5047...
     connection...
       parse host... OK
       dns lookup... OK
       addresses: 127.0.0.1, ::1
       dial up... OK
     TLS... WARN secure connection disabled
     talk to server... OK

8. Restart the Filebeat service to start shipping events.

   $ sudo systemctl restart filebeat

   Related: How to manage the Filebeat service with systemctl in Linux

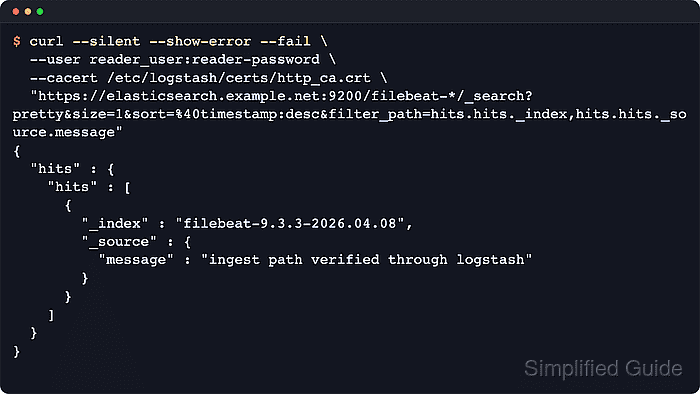

9. Verify documents are arriving in Elasticsearch.

   $ curl --silent "http://localhost:9200/logs-filebeat/_count?pretty"
   {
     "count" : 3087,
     "_shards" : {
       "total" : 1,
       "successful" : 1,
       "skipped" : 0,
       "failed" : 0
     }
   }

   Use journalctl -u logstash and journalctl -u filebeat to inspect service logs when the document count stays at 0.
