Using an API key for Logstash output keeps a pipeline from reusing a long-lived Elasticsearch user password. A separate key per Logstash host or pipeline makes rotation easier, limits the effect of a leaked configuration, and keeps output permissions scoped to the target indices the pipeline should write.
The elasticsearch output plugin sends bulk requests over HTTP(S) and authenticates with the api_key setting. The value must be the raw id:api_key pair returned by the Create API key API, not the encoded value that Elasticsearch also returns for direct Authorization: ApiKey HTTP headers.
API key authentication in the output plugin requires TLS through cloud_id, an https host, or ssl_enabled. Self-managed clusters that use Elastic's generated HTTP certificate need a trusted CA path on the Logstash host, while Elastic Cloud can use cloud_id with the same api_key value and no separate CA file.
Steps to use an Elasticsearch API key with Logstash output:
- Create an API key scoped to the Logstash output target.
$ curl --silent --show-error --fail \ --cacert /etc/logstash/certs/http_ca.crt \ --user elastic:password \ --header "Content-Type: application/json" \ --request POST "https://elasticsearch.example.net:9200/_security/api_key?pretty" \ --data '{ "name": "logstash-output-host001", "role_descriptors": { "logstash_writer": { "cluster": ["monitor"], "indices": [ { "names": ["logstash-api-key-*"], "privileges": ["write", "create", "create_index", "view_index_metadata"] } ] } } }' { "id" : "TiNAGG4BaaMdaH1tRfuU", "name" : "logstash-output-host001", "api_key" : "KnR6yE41RrSowb0kQ0HWoA", "encoded" : "VGlOQUdHNEJhYU1kYUgxdFJmdVU6S25SNnlFNDFSclNvd2Iwa1EwSFdvQQ==" }Administrator passwords on the command line can leak through shell history and process listings. Use a prompting workflow or a protected automation secret when creating real keys.
Join the returned id and api_key fields with a colon for Logstash. The encoded value belongs in direct HTTP Authorization headers, not in the output plugin's api_key setting.
- Create the Logstash keystore only when this host does not already have one.
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash create Using bundled JDK: /usr/share/logstash/jdk Sending Logstash logs to /var/log/logstash which is now configured via log4j2.properties WARNING: The keystore password is not set. Continue without password protection on the keystore? [y/N] y Created Logstash keystore at /etc/logstash/logstash.keystore
The create command can overwrite an existing keystore after confirmation. Do not continue on a host that already stores Logstash secrets unless the old entries are backed up or no longer needed.
Use the same --path.settings /etc/logstash directory that the packaged service reads.
Related: How to create a Logstash keystore

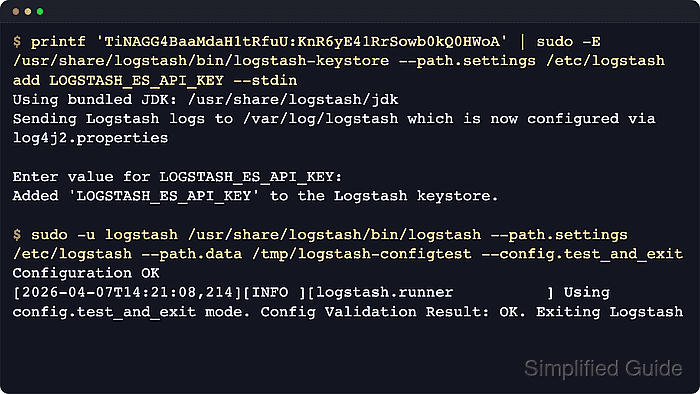

- Add the id:api_key value to the Logstash keystore.
$ sudo -E /usr/share/logstash/bin/logstash-keystore --path.settings /etc/logstash add logstash_es_api_key Using bundled JDK: /usr/share/logstash/jdk Sending Logstash logs to /var/log/logstash which is now configured via log4j2.properties Enter value for logstash_es_api_key: Added 'logstash_es_api_key' to the Logstash keystore.
Paste the id:api_key value when prompted. For automation, feed --stdin from a protected secret store or file descriptor instead of typing the key literal into the shell command.
- Update the elasticsearch output block to use the keystore-backed API key and TLS settings.
output { elasticsearch { hosts => ["https://elasticsearch.example.net:9200"] ssl_enabled => true ssl_certificate_authorities => ["/etc/logstash/certs/http_ca.crt"] api_key => "${logstash_es_api_key}" manage_template => false ilm_enabled => false index => "logstash-api-key-%{+YYYY.MM.dd}" } }The ssl_certificate_authorities setting replaces the old cacert option in current plugin versions. Keep the api_key value quoted because the resolved secret contains a colon.
Leave manage_template and ilm_enabled disabled unless this pipeline owns templates or lifecycle policy setup. Enable those features only after expanding the API key privileges to match.
- Test the Logstash pipeline configuration with a temporary path.data directory.
$ sudo -u logstash /usr/share/logstash/bin/logstash --path.settings /etc/logstash --path.data /tmp/logstash-configtest --config.test_and_exit -f /etc/logstash/conf.d/api-key.conf Using bundled JDK: /usr/share/logstash/jdk Sending Logstash logs to /var/log/logstash which is now configured via log4j2.properties Configuration OK [2026-06-18T14:36:58,392][INFO ][logstash.runner ] Using config.test_and_exit mode. Config Validation Result: OK. Exiting Logstash
Configuration validation checks pipeline syntax, plugin settings, and keystore interpolation. It does not prove that Elasticsearch accepts the API key at runtime.
- Restart the Logstash service to load the updated pipeline secret and output settings.
$ sudo systemctl restart logstash
Restarting Logstash can briefly pause ingestion while pipelines stop, reload, and reconnect.
- Review recent Logstash logs for Elasticsearch connection and pipeline startup messages.
$ sudo journalctl --unit logstash --since "5 minutes ago" --no-pager Jun 18 14:37:04 host logstash[21457]: [2026-06-18T14:37:04,851][INFO ][logstash.outputs.elasticsearch][main] Elasticsearch pool URLs updated {:changes=>{:removed=>[], :added=>[https://elasticsearch.example.net:9200/]}} Jun 18 14:37:05 host logstash[21457]: [2026-06-18T14:37:05,019][INFO ][logstash.outputs.elasticsearch][main] Connected to ES instance {:url=>"https://elasticsearch.example.net:9200/"} Jun 18 14:37:05 host logstash[21457]: [2026-06-18T14:37:05,355][INFO ][logstash.javapipeline ][main] Pipeline started {"pipeline.id"=>"main"} ##### snipped #####401 or 403 responses usually mean the API key belongs to another cluster or lacks a required privilege. Certificate errors usually point to the wrong CA file or a hostname mismatch.
- Verify documents are reaching the expected index pattern with a separate read-capable credential.
$ curl --silent --show-error --fail \ --cacert /etc/logstash/certs/http_ca.crt \ --user elastic:password \ "https://elasticsearch.example.net:9200/logstash-api-key-*/_count?pretty" { "count" : 42, "_shards" : { "total" : 1, "successful" : 1, "skipped" : 0, "failed" : 0 } }The Logstash API key does not need read privileges for this query. Use a separate credential that is allowed to inspect the target indices.
A just-ingested test event may not appear until Elasticsearch refreshes the index. Wait briefly or refresh the target index with an administrative credential before rechecking.
