How to submit a Spark job to Kubernetes

Submitting Apache Spark work to Kubernetes creates a driver pod that starts executor pods for the application. This fits teams that already operate a Kubernetes cluster and want Spark jobs to use namespace, image, and service-account controls instead of a separate standalone Spark cluster.

spark-submit talks to the Kubernetes API server, creates the driver pod, and passes Spark configuration into that pod. The driver then uses its Kubernetes service account to create executor pods and clean up executor-side resources when the application finishes.

A small Spark Pi run is enough to prove the submission path because the example JAR is already present in the official apache/spark:4.1.2 image. For a packaged application, keep the same namespace, image, and service-account shape while changing the class name and application URI.

1. Check the Kubernetes API server URL for the active context.

   $ kubectl cluster-info
   Kubernetes control plane is running at https://kubernetes.example.net:6443
   CoreDNS is running at https://kubernetes.example.net:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

   The spark-submit master value uses the same API server URL with the k8s://https:// prefix.

2. Create a namespace for the Spark application pods.

   $ kubectl create namespace spark-jobs
   namespace/spark-jobs created

3. Create a Kubernetes service account for the Spark driver pod.

   $ kubectl -n spark-jobs create serviceaccount spark
   serviceaccount/spark created

4. Grant the driver service account namespace-scoped permissions for Spark pods and cleanup resources.

   $ kubectl -n spark-jobs create role spark-driver \
     --verb=create,get,list,watch,delete,deletecollection \
     --resource=pods,services,configmaps,persistentvolumeclaims
   role.rbac.authorization.k8s.io/spark-driver created

   A Role is enough when the driver and executors run in one namespace. The deletecollection verb lets Spark remove label-selected executor pods and temporary resources during shutdown.

5. Bind the role to the Spark service account.

   $ kubectl -n spark-jobs create rolebinding spark-driver \
     --role=spark-driver \
     --serviceaccount=spark-jobs:spark
   rolebinding.rbac.authorization.k8s.io/spark-driver created

6. Confirm the service account can create driver-managed pods in the namespace.

   $ kubectl auth can-i create pods \
     --as system:serviceaccount:spark-jobs:spark \
     -n spark-jobs
   yes

7. Submit the Spark Pi job to Kubernetes in cluster deploy mode.

   $ ./bin/spark-submit \
     --master k8s://https://kubernetes.example.net:6443 \
     --deploy-mode cluster \
     --name spark-pi \
     --class org.apache.spark.examples.SparkPi \
     --conf spark.kubernetes.namespace=spark-jobs \
     --conf spark.kubernetes.authenticate.driver.serviceAccountName=spark \
     --conf spark.kubernetes.container.image=apache/spark:4.1.2 \
     --conf spark.kubernetes.container.image.pullPolicy=IfNotPresent \
     --conf spark.kubernetes.submission.waitAppCompletion=true \
     --conf spark.executor.instances=1 \
     --conf spark.driver.memory=512m \
     --conf spark.executor.memory=512m \
     local:///opt/spark/examples/jars/spark-examples_2.13-4.1.2.jar \
     10
   ##### snipped #####
   Application spark-pi with application ID spark-75c9958819cb4369b1590433d6833e78 and submission ID spark-jobs:spark-pi-509d429f393b50cb-driver finished

   The local:///opt/spark/... URI is inside the Spark container image, not on the machine running spark-submit. Use a container image, object-store URI, or upload path that makes the application file visible to the driver pod.

8. List the Spark pods created for the application.

   $ kubectl get pods -n spark-jobs -l spark-app-name=spark-pi
   NAME                               READY   STATUS      RESTARTS   AGE
   spark-pi-509d429f393b50cb-driver   0/1     Completed   0          23s

   Executor pods usually terminate after the job finishes. The completed driver pod remains long enough for status checks and log review.

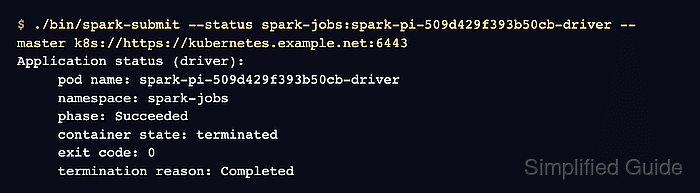

9. Check the Spark submission status with the driver pod submission ID.

   $ ./bin/spark-submit \
     --status spark-jobs:spark-pi-509d429f393b50cb-driver \
     --master k8s://https://kubernetes.example.net:6443
   Application status (driver):
        pod name: spark-pi-509d429f393b50cb-driver
        namespace: spark-jobs
        phase: Succeeded
        container state: terminated
        exit code: 0
        termination reason: Completed

   Related: How to check Spark application status

10. Read the driver log to confirm the application result.

    $ kubectl logs -n spark-jobs spark-pi-509d429f393b50cb-driver
    ##### snipped #####
    Pi is roughly 3.140931140931141
    ##### snipped #####

    Related: How to view Apache Spark logs

11. Remove the sample driver pod after saving any logs you need.

    $ kubectl delete pod -n spark-jobs -l spark-app-name=spark-pi
    pod "spark-pi-509d429f393b50cb-driver" deleted
