How to export telemetry from the OpenTelemetry Collector with OTLP

Exporting telemetry from the OpenTelemetry Collector with OTLP forwards data from one Collector pipeline to another Collector, gateway, or vendor endpoint using OpenTelemetry's native protocol. Use this when applications send telemetry to a nearby Collector, but routing, batching, filtering, or final backend delivery happens somewhere else.

The exporter is declared under exporters and becomes active only when a service pipeline lists it. Current Collector configuration examples use otlp_grpc for the gRPC exporter, where the endpoint is a host and port such as otel-gateway:4317 rather than an HTTP URL.

The smoke test uses a local receiving Collector and an upstream Collector that prints received spans with the debug exporter. Plaintext gRPC is acceptable for the local proof because tls.insecure is explicit, but shared or production traffic should use verified TLS, credentials, network policy, and exporter retry settings before the pipeline carries real telemetry.

1. Create the upstream Collector configuration.

   gateway.yaml

   receivers:
     otlp:
       protocols:
         grpc:
           endpoint: 0.0.0.0:4317

   exporters:
     debug:
       verbosity: detailed

   service:
     pipelines:
       traces:
         receivers: [otlp]
         exporters: [debug]

   The upstream Collector represents the gateway or backend side of the handoff. The debug exporter is only for proving the export path before replacing the destination with the real backend.

2. Validate the upstream Collector configuration.

   $ otelcol validate --config=gateway.yaml

   No output with a zero exit status means the file parsed and the referenced receiver, exporter, and pipeline are available in the Collector distribution.

3. Start the upstream Collector in the first terminal.

   $ otelcol --config=gateway.yaml
   2026-06-18T07:31:12.859Z info Starting GRPC server component=otlp endpoint=[::]:4317
   2026-06-18T07:31:12.859Z info Everything is ready. Begin running and processing data.

4. Create the local Collector configuration that exports to the upstream OTLP endpoint.

   agent.yaml

   receivers:
     otlp:
       protocols:
         http:
           endpoint: 0.0.0.0:4318

   exporters:
     otlp_grpc:
       endpoint: otel-gateway:4317
       tls:
         insecure: true

   service:
     pipelines:
       traces:
         receivers: [otlp]
         exporters: [otlp_grpc]

   tls.insecure: true disables transport verification for the local smoke test. Use TLS settings and credentials that match the upstream endpoint before exposing the exporter across a shared network.

   The otlp_grpc exporter sends the trace pipeline to otel-gateway:4317. Add matching metrics or logs pipelines only for signals that should be forwarded to the same destination.
   Tool: OpenTelemetry Collector Config Generator

5. Validate the local Collector configuration.

   $ otelcol validate --config=agent.yaml

6. Start the local Collector in a second terminal.

   $ otelcol --config=agent.yaml
   2026-06-18T07:31:13.119Z info Starting HTTP server component=otlp endpoint=[::]:4318
   2026-06-18T07:31:13.119Z info Everything is ready. Begin running and processing data.

7. Create a trace payload for the exporter smoke test.

   trace.json

   {
     "resourceSpans": [
       {
         "resource": {
           "attributes": [
             {
               "key": "service.name",
               "value": {
                 "stringValue": "checkout-api"
               }
             }
           ]
         },
         "scopeSpans": [
           {
             "scope": {
               "name": "manual-otlp-export"
             },
             "spans": [
               {
                 "traceId": "5b8efff798038103d269b633813fc60c",
                 "spanId": "eee19b7ec3c1b174",
                 "name": "otlp-export-smoke",
                 "kind": 1,
                 "startTimeUnixNano": "1717260000000000000",
                 "endTimeUnixNano": "1717260001000000000"
               }
             ]
           }
         ]
       }
     ]
   }

8. Send the trace to the local OTLP/HTTP receiver.

   $ curl --silent --show-error --include --request POST http://127.0.0.1:4318/v1/traces \
     --header 'Content-Type: application/json' \
     --data @trace.json
   HTTP/1.1 200 OK
   Content-Type: application/json
   Content-Length: 21

   {"partialSuccess":{}}

   The 200 OK response confirms that the local Collector accepted the trace. The upstream log check confirms that the otlp_grpc exporter forwarded it.

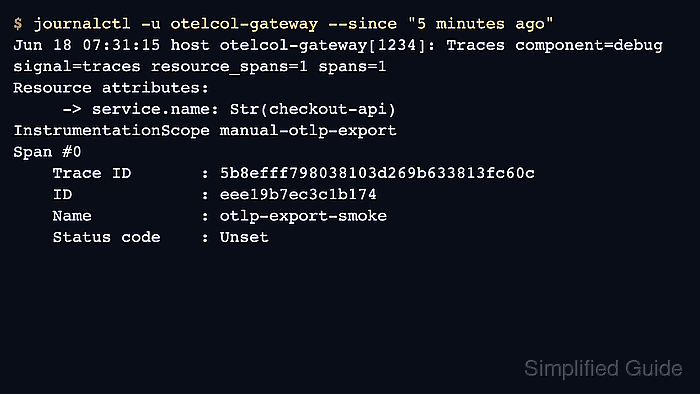

9. Check the upstream Collector log for the forwarded span.

   $ journalctl -u otelcol-gateway --since "5 minutes ago"
   Jun 18 07:31:15 host otelcol-gateway[1234]: Traces component=debug signal=traces resource_spans=1 spans=1
   Resource attributes:
        -> service.name: Str(checkout-api)
   InstrumentationScope manual-otlp-export
   Span #0
       Trace ID       : 5b8efff798038103d269b633813fc60c
       ID             : eee19b7ec3c1b174
       Name           : otlp-export-smoke
       Status code    : Unset

   If the upstream Collector is running in the foreground, read the same debug exporter output from that terminal instead of journalctl. For a Docker test, use the gateway container logs.

10. Remove the smoke-test payload after the export path is confirmed.

    $ rm trace.json

    Stop the foreground Collectors with Ctrl+C when the local test is finished. Keep the exporter configuration only after replacing the local endpoint, plaintext TLS mode, and debug destination with the intended upstream settings.
