How to configure retry and queue settings in the OpenTelemetry Collector

Configuring retry and queue settings in the OpenTelemetry Collector keeps exporter delivery from failing immediately when an upstream backend returns transient errors or becomes unavailable during a short maintenance window. The settings belong on each exporter, where the Collector can buffer telemetry, retry eligible failures, and resume delivery after the backend accepts requests again.

The sending queue sits before the exporter sends a request. An in-memory queue protects against brief backend delays, while a persistent queue uses a storage extension such as file_storage so queued batches can survive a Collector restart.

Use queue size, retry intervals, and elapsed retry time that match the amount of telemetry the backend can absorb after recovery. Persistent queues need a writable local directory and enough disk space for the backlog; a full queue still drops data because the Collector cannot accept unlimited exporter backlog.

1. Open the active Collector configuration file.

   $ sudoedit /etc/otelcol/config.yaml

   Packaged services commonly read /etc/otelcol/config.yaml, but the active file can be changed by a service unit, container mount, or --config argument.

2. Create a writable directory for a persistent queue.

   $ sudo install -d -o otelcol -g otelcol -m 0750 /var/lib/otelcol/queue

   Match the owner and group to the service account that runs the Collector. Some packages use otelcol, some use otelcol-contrib, and containers usually use a mounted directory with container-local ownership.

3. Add the file_storage extension, exporter retry settings, and exporter sending queue.

   /etc/otelcol/config.yaml

   extensions:
     file_storage:
       directory: /var/lib/otelcol/queue
       create_directory: true

   receivers:
     otlp:
       protocols:
         grpc:
           endpoint: 0.0.0.0:4317
         http:
           endpoint: 0.0.0.0:4318

   processors:
     batch:
       timeout: 1s

   exporters:
     otlp_http:
       endpoint: https://collector-gateway.example.net:4318
       timeout: 10s
       retry_on_failure:
         enabled: true
         initial_interval: 5s
         max_interval: 30s
         max_elapsed_time: 10m
       sending_queue:
         enabled: true
         queue_size: 5000
         storage: file_storage

   service:
     extensions:
       - file_storage
     pipelines:
       traces:
         receivers:
           - otlp
         processors:
           - batch
         exporters:
           - otlp_http
       metrics:
         receivers:
           - otlp
         processors:
           - batch
         exporters:
           - otlp_http
       logs:
         receivers:
           - otlp
         processors:
           - batch
         exporters:
           - otlp_http

   The otlp_http exporter, retry_on_failure block, and sending_queue block are per-exporter settings. Repeat the queue and retry block on each exporter that needs this behavior.

   file_storage is available in the Collector Contrib distribution and in custom Collector builds that include the extension. If the active Collector build does not include it, omit storage: file_storage for an in-memory queue or switch to a build that includes the storage extension.

4. Validate the configuration before restarting the service.

   $ otelcol-contrib validate --config=/etc/otelcol/config.yaml

   No output with a zero exit status means the file parsed successfully and the referenced components are available in the running Collector distribution. Use otelcol validate when the core binary owns the service instead of otelcol-contrib.

5. Restart the service that owns the active Collector process.

   $ sudo systemctl restart otelcol-contrib

   For the core package, the unit may be otelcol. For containers, recreate the container or rollout the workload with the updated mounted configuration file.

6. Confirm the persistent queue initialized.

   $ journalctl -u otelcol-contrib --since "5 minutes ago"
   Jun 18 06:36:54 host otelcol-contrib[1234]: Extension started. component=file_storage
   Jun 18 06:36:54 host otelcol-contrib[1234]: Initializing new persistent queue component=otlp_http signal=logs
   Jun 18 06:36:54 host otelcol-contrib[1234]: Everything is ready. Begin running and processing data.

   The startup log should show the storage extension and a queue for each signal exported through otlp_http.

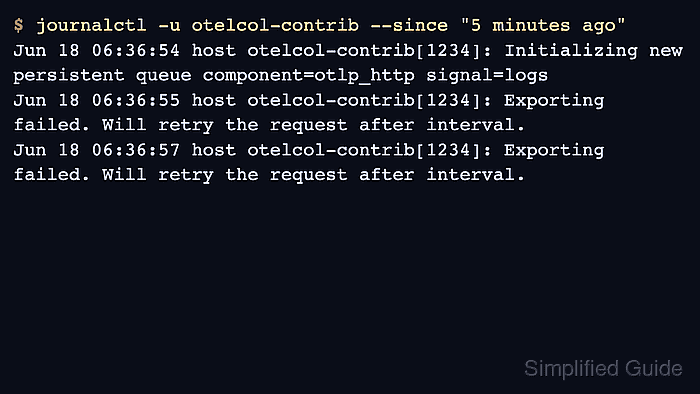

7. Watch the exporter during a controlled backend outage or maintenance window.

   $ journalctl -u otelcol-contrib --since "5 minutes ago"
   Jun 18 06:36:55 host otelcol-contrib[1234]: Exporting failed. Will retry the request after interval. error="request to https://collector-gateway.example.net:4318/v1/logs responded with HTTP Status Code 503"
   Jun 18 06:36:57 host otelcol-contrib[1234]: Exporting failed. Will retry the request after interval. error="request to https://collector-gateway.example.net:4318/v1/logs responded with HTTP Status Code 503"

   Retry messages should stop after the backend recovers and accepts queued batches. If they continue until max_elapsed_time is reached, the backend is still failing or the exporter configuration points at the wrong endpoint.

8. Confirm the recovered backend accepted a retried batch.

   $ cat retry-backend-requests.jsonl
   {"path": "/v1/logs", "status": 503, "request": 1, "body_bytes": 100}
   {"path": "/v1/logs", "status": 503, "request": 2, "body_bytes": 100}
   {"path": "/v1/logs", "status": 200, "request": 3, "body_bytes": 100}

   The first two attempts were retryable failures, and the third request was the same queued batch accepted after recovery. In production, confirm the matching signal in the destination backend or through Collector exporter queue metrics.
