How to create a Nagios Core object template

Nagios Core object templates keep repeated host or service settings out of each individual object definition. They fit monitoring environments where many hosts share check timing, retry behavior, notification windows, or contact groups while each real object keeps its own name and address.

Templates use the same define host or define service syntax as registered objects, but a template carries a name directive and register 0. A registered object inherits from a template with use, and any value set directly on the registered object overrides the inherited value.

Ubuntu and Debian packages commonly load /etc/nagios4/conf.d from /etc/nagios4/nagios.cfg. Source installs or older layouts may load a different directory from cfg_file or cfg_dir, so place the template file in a directory that the active Nagios Core configuration already reads.

1. List the object directories loaded by the active main configuration.

   $ grep '^cfg_dir=' /etc/nagios4/nagios.cfg
   cfg_dir=/etc/nagios-plugins/config
   cfg_dir=/etc/nagios4/conf.d

   Use /etc/nagios4/conf.d for site-specific objects on Ubuntu and Debian package installs, or add a separate custom object directory first. Nagios Core processes files ending in .cfg from cfg_dir directories.
   Related: How to add a Nagios Core object configuration directory

2. Open a new object file in the custom object directory.

   $ sudoedit /etc/nagios4/conf.d/\
   object-template-create.cfg

   Source installs commonly use /usr/local/nagios/etc/objects or another path named by cfg_file or cfg_dir in the main configuration.

3. Add a reusable host template.

   object-template-create.cfg

   define host {
       name                    web-host-template
       use                     linux-server
       check_interval          5
       retry_interval          1
       max_check_attempts      3
       notification_interval   60
       notification_period     24x7
       notification_options    d,u,r
       contact_groups          admins
       register                0
   }

   name is the template name that other objects reference, use lets this template inherit from an existing template, and register 0 prevents Nagios Core from treating the partial definition as a real host. register 0 is not inherited, so every partial template needs its own line.

4. Add a host object that inherits the template.

   object-template-create.cfg

   define host {
       use                     web-host-template
       host_name               web01.example.net
       alias                   Web application host
       address                 192.0.2.10
   }

   Local values such as host_name, alias, and address stay on the real host object. The retry, interval, notification, and contact settings come from web-host-template unless the host overrides them.

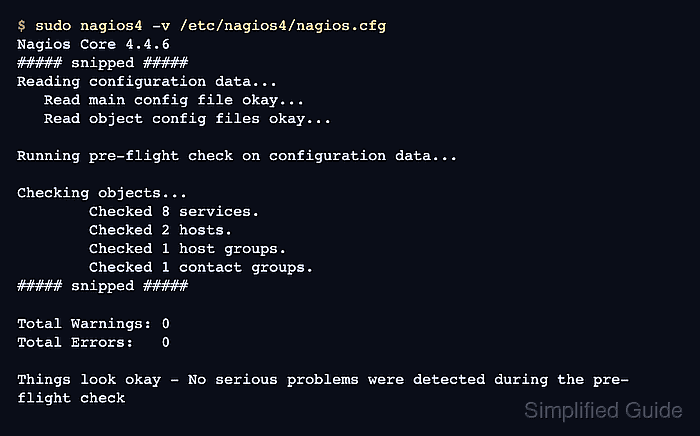

5. Validate the Nagios Core object configuration.

   $ sudo nagios4 -v \
     /etc/nagios4/nagios.cfg
   Nagios Core 4.4.6
   ##### snipped #####
   Reading configuration data...
      Read main config file okay...
      Read object config files okay...

   Running pre-flight check on configuration data...

   Checking objects...
   	Checked 8 services.
   	Checked 2 hosts.
   	Checked 1 host groups.
   	Checked 0 service groups.
   	Checked 1 contacts.
   	Checked 1 contact groups.
   	Checked 180 commands.
   	Checked 5 time periods.
   ##### snipped #####

   Total Warnings: 0
   Total Errors:   0

   Things look okay - No serious problems were detected during the pre-flight check

   Related: How to validate the Nagios Core configuration

6. Reload the nagios4 service to apply the accepted object definitions.

   $ sudo systemctl reload nagios4

   Use a restart window instead when your platform does not provide a reload-capable nagios4 service unit.
   Related: How to manage the Nagios Core system service

7. Confirm the inherited host was loaded into the object cache.

   $ sudo grep web01.example.net \
     /var/lib/nagios4/objects.cache
   	host_name	web01.example.net

   Use the object_cache_file path from /etc/nagios4/nagios.cfg when your installation stores the runtime object cache somewhere else.
