How to set up MySQL read/write load balancing with HAProxy and replication

Splitting write traffic from read traffic keeps the primary MySQL server focused on transactions that must land in one place, while replica nodes absorb reporting, search, and other read-heavy workloads. That reduces contention on the primary and gives applications a stable pair of endpoints instead of hard-coding individual database hosts.

This layout combines file-and-position replication with HAProxy TCP frontends. The source server writes binary log events, replicas replay those events to stay current, and HAProxy presents one port for writes and another port for load-balanced reads because it routes whole TCP sessions rather than inspecting SQL statements.

Replication is still asynchronous, so the read endpoint can return slightly stale data during bursts or link problems, and this setup does not provide automatic primary promotion by itself. The flow below uses current MySQL 8.4 syntax such as SHOW BINARY LOG STATUS, CHANGE REPLICATION SOURCE TO, START REPLICA, and --source-data; if the topology already uses GTID, keep that method instead of falling back to manual log coordinates.

Common MySQL config paths include /etc/mysql/mysql.conf.d/mysqld.cnf on Debian or Ubuntu and /etc/my.cnf on RHEL, Rocky Linux, AlmaLinux, or SUSE. HAProxy commonly uses /etc/haproxy/haproxy.cfg.

Steps to set up MySQL read/write load balancing with HAProxy and replication:

Edit the source server replication config file.
```
$ sudoedit /etc/mysql/conf.d/replication.cnf
```
Add a unique source server_id and enable the binary log on the source server.
```
[mysqld]
server_id = 1
log_bin = mysql-bin
```
Every server in the topology needs its own server_id value. If the source only listens on 127.0.0.1, remote replicas will not be able to connect.
Restart the source MySQL service so the replication settings load.
```
$ sudo systemctl restart mysql
```
Use the installed unit name such as mysql or mysqld.
Related: How to manage MySQL or MariaDB service in Linux

Confirm that the source is writing a binary log and record the current file name.

$ mysql --user=root --password --execute "SHOW BINARY LOG STATUS\G"
*************************** 1. row ***************************
             File: mysql-bin.000003
         Position: 2557
     Binlog_Do_DB:
 Binlog_Ignore_DB:
Executed_Gtid_Set:

Create a replication account that is limited to the replica hosts.

$ mysql --user=root --password --execute "CREATE USER 'repl'@'db-replica-1.example.net' IDENTIFIED BY 'ReplPass123!';"
$ mysql --user=root --password --execute "CREATE USER 'repl'@'db-replica-2.example.net' IDENTIFIED BY 'ReplPass123!';"
$ mysql --user=root --password --execute "GRANT REPLICATION SLAVE ON *.* TO 'repl'@'db-replica-1.example.net';"
$ mysql --user=root --password --execute "GRANT REPLICATION SLAVE ON *.* TO 'repl'@'db-replica-2.example.net';"
$ mysql --user=root --password --execute "FLUSH PRIVILEGES;"

Use replica-specific hostnames or IP addresses instead of '%' for the replication account.

Create a consistent logical seed dump on the source server.
```
$ mysqldump --user=root --password --all-databases --single-transaction --routines --triggers --events --source-data=2 > /var/tmp/mysql-ha-seed.sql
```
--source-data is the current option that writes the matching binary log file and position into the dump header.

--single-transaction keeps InnoDB tables consistent, but it does not protect non-transactional tables such as MyISAM.

Copy the seed dump to each replica server.

$ scp /var/tmp/mysql-ha-seed.sql root@db-replica-1.example.net:/var/tmp/
$ scp /var/tmp/mysql-ha-seed.sql root@db-replica-2.example.net:/var/tmp/

Edit the replica config file on each replica server.
```
$ sudoedit /etc/mysql/conf.d/replica.cnf
```
Give each replica its own server_id and relay log name.
```
[mysqld]
server_id = 2
relay_log = replica1-relay-bin
```
Change both server_id and relay_log on every replica so they stay unique. Enable read_only and super_read_only after the seed import and replica startup so the restore is not blocked.
Restart the MySQL service on each replica so the replica settings load.
```
$ sudo systemctl restart mysql
```
Use the installed unit name such as mysql or mysqld.
Related: How to manage MySQL or MariaDB service in Linux
Import the seed dump on each replica before starting replication.
```
$ mysql --user=root --password < /var/tmp/mysql-ha-seed.sql
```
Import into an empty or disposable dataset only, because restoring a full dump over unrelated existing data can create conflicts or silent drift.
Extract the replication coordinates from the dump header on each replica.
```
$ grep -m1 -E "^-- CHANGE REPLICATION SOURCE TO SOURCE_LOG_FILE" /var/tmp/mysql-ha-seed.sql
-- CHANGE REPLICATION SOURCE TO SOURCE_LOG_FILE='mysql-bin.000003', SOURCE_LOG_POS=2557;
```
The dump header is the safest source for file and position values, especially when the source uses a custom binary log basename.
Point each replica at the source server with the extracted coordinates.
```
$ mysql --user=root --password --execute "CHANGE REPLICATION SOURCE TO SOURCE_HOST='db-primary.example.net', SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='ReplPass123!', SOURCE_LOG_FILE='mysql-bin.000003', SOURCE_LOG_POS=2557, GET_SOURCE_PUBLIC_KEY=1;"
```
GET_SOURCE_PUBLIC_KEY=1 is needed when the replication account uses the default caching_sha2_password plugin and the channel is not already protected with TLS or a configured public key file.

Related: How to enable GTID replication in MySQL or MariaDB

Start the replica threads on each replica server.

$ mysql --user=root --password --execute "START REPLICA;"

Confirm that both replication threads are running and that lag is near zero.

$ mysql --user=root --password --execute "SHOW REPLICA STATUS\G" | egrep 'Source_Host|Replica_IO_Running|Replica_SQL_Running|Seconds_Behind_Source|Last_IO_Error|Last_SQL_Error'
                  Source_Host: db-primary.example.net
           Replica_IO_Running: Yes
          Replica_SQL_Running: Yes
        Seconds_Behind_Source: 0
                Last_IO_Error:
               Last_SQL_Error:

If either thread reports No, fix the replication error before putting HAProxy in front of the replicas.

Persist the replica read-only guardrails after the replication channel is running.
```
$ mysql --user=root --password --execute "SET PERSIST read_only=ON; SET PERSIST super_read_only=ON;"
```
Applying the guardrails after the restore keeps the seed import writable while still making later replica restarts come back in read-only mode.
Edit the HAProxy config file on the load balancer host.
```
$ sudoedit /etc/haproxy/haproxy.cfg
```

Add separate HAProxy frontends and backends for writes and reads.

frontend mysql_write
    bind *:3306
    default_backend mysql_primary

backend mysql_primary
    option tcp-check
    server mysql-primary db-primary.example.net:3306 check

frontend mysql_read
    bind *:3307
    default_backend mysql_replicas

backend mysql_replicas
    balance roundrobin
    option tcp-check
    server mysql-replica-1 db-replica-1.example.net:3306 check
    server mysql-replica-2 db-replica-2.example.net:3306 check

Current MySQL 8.4 keeps caching_sha2_password as the default account plugin and disables mysql_native_password by default, so a plain TCP health check is the safest default. HAProxy can use option mysql-check user <name> only when the backend check account is deliberately configured with an auth method that probe supports.

Validate the HAProxy configuration before reloading the service.

$ sudo haproxy -c -V -f /etc/haproxy/haproxy.cfg
Configuration file is valid

Restart the HAProxy service so the new frontends and backends go live.
```
$ sudo systemctl restart haproxy
```
A single HAProxy node is still a single point of failure, so add a redundant pair or upstream failover mechanism if the endpoint itself must survive host loss.

Confirm that HAProxy is listening on both the write and read ports.

$ sudo ss -lntp | grep haproxy
LISTEN 0      2048         0.0.0.0:3306      0.0.0.0:*    users:(("haproxy",pid=1528,fd=7))
LISTEN 0      2048         0.0.0.0:3307      0.0.0.0:*    users:(("haproxy",pid=1528,fd=8))

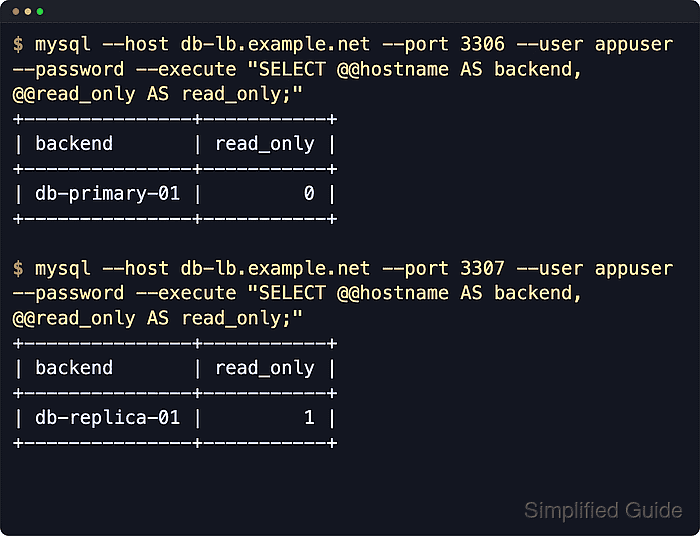

Test the write endpoint through HAProxy with a normal application account.

$ mysql --host db-lb.example.net --port 3306 --user appuser --password --execute "SELECT @@hostname AS backend, @@read_only AS read_only;"
+---------------+-----------+
| backend       | read_only |
+---------------+-----------+
| db-primary-01 |         0 |
+---------------+-----------+

Test the read endpoint through HAProxy and confirm it lands on a replica.

$ mysql --host db-lb.example.net --port 3307 --user appuser --password --execute "SELECT @@hostname AS backend, @@read_only AS read_only;"
+---------------+-----------+
| backend       | read_only |
+---------------+-----------+
| db-replica-01 |         1 |
+---------------+-----------+

Repeated connections to the read endpoint can rotate across different replicas because balancing happens per TCP session.

Point application write traffic at the HAProxy write port.

Use db-lb.example.net:3306 for statements that must reach the primary node.
Point read-only application traffic at the HAProxy read port.

Use db-lb.example.net:3307 for reads, and keep replication lag in mind when strict read-after-write consistency is required.
