How to renew a Hyperledger Fabric certificate

Renewing a Hyperledger Fabric certificate replaces an expiring Fabric CA enrollment certificate in an existing MSP before the identity stops authenticating. It is a maintenance task for admin, client, peer, or orderer identities that were originally enrolled with Fabric CA.

fabric-ca-client reenroll authenticates with the current MSP certificate and writes a new signed certificate into the selected MSP directory. The CA server keeps the identity record, while the client refreshes signcerts and may create a new private key under keystore unless key reuse is requested.

Run renewal before the current certificate expires. If the certificate is already expired, the CA server must allow expired-certificate reenrollment with ca.reenrollignorecertexpiry or the identity needs a new enrollment path through an authorized registrar.

1. Inspect the certificate currently stored in the MSP directory.

   $ openssl x509 -in admin/msp/signcerts/cert.pem -noout -subject -issuer -dates -serial
   subject=C=US, ST=North Carolina, O=Hyperledger, OU=client, CN=admin
   issuer=C=US, ST=North Carolina, O=Hyperledger, OU=Fabric, CN=fabric-ca-server
   notBefore=Jun 21 09:42:00 2025 GMT
   notAfter=Jun 21 09:42:00 2026 GMT
   serial=549BFD4DAE9A4AEC1A27990DE0675BDA569AC9AC

   Use the MSP path that the Fabric client, peer, or orderer actually uses. For a peer local MSP, this is the path configured as peer.mspConfigPath. For an orderer local MSP, it is General.LocalMSPDir.

2. Back up the MSP directory before replacing certificate material.

   $ cp -a admin/msp admin/msp.before-renewal

   The renewed MSP may contain a new private key. Keep the backup until a Fabric command, node startup, or application connection has succeeded with the renewed MSP.

3. Reenroll the identity into the same MSP directory.

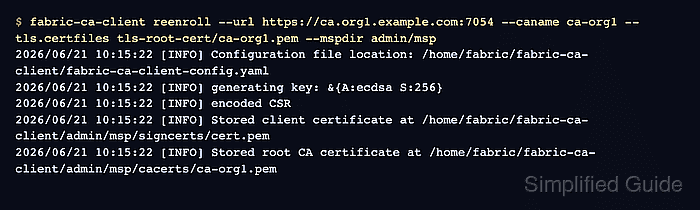

   $ fabric-ca-client reenroll --url https://ca.org1.example.com:7054 --caname ca-org1 --tls.certfiles tls-root-cert/ca-org1.pem --mspdir admin/msp
   2026/06/21 10:15:22 [INFO] Configuration file location: /home/fabric/fabric-ca-client/fabric-ca-client-config.yaml
   2026/06/21 10:15:22 [INFO] generating key: &{A:ecdsa S:256}
   2026/06/21 10:15:22 [INFO] encoded CSR
   2026/06/21 10:15:22 [INFO] Stored client certificate at /home/fabric/fabric-ca-client/admin/msp/signcerts/cert.pem
   2026/06/21 10:15:22 [INFO] Stored root CA certificate at /home/fabric/fabric-ca-client/admin/msp/cacerts/ca-org1.pem

   Omit --caname when the server has only the default CA. Add --csr.keyrequest.reusekey only when the deployment policy requires the existing private key to be reused.

4. Inspect the renewed certificate in the MSP directory.

   $ openssl x509 -in admin/msp/signcerts/cert.pem -noout -subject -issuer -dates -serial
   subject=C=US, ST=North Carolina, O=Hyperledger, OU=client, CN=admin
   issuer=C=US, ST=North Carolina, O=Hyperledger, OU=Fabric, CN=fabric-ca-server
   notBefore=Jun 21 10:15:00 2026 GMT
   notAfter=Jun 21 10:15:00 2027 GMT
   serial=7AA491352FE32301B2E9B0E38DA16483617A382E

   The subject and issuer should still match the intended identity and CA, while the serial number and validity window should reflect the renewed certificate.
   Tool: SSL Certificate Decoder

5. Restart any peer or orderer process that keeps the renewed local MSP in memory.

   $ docker compose restart peer0.org1.example.com
    Container peer0.org1.example.com Restarting
    Container peer0.org1.example.com Started

   Use the service manager for the actual deployment, such as systemd, Kubernetes, or Docker Compose. Admin and client MSPs used by short-lived CLI commands normally take effect on the next command invocation.

6. Run a CA-authenticated certificate lookup with the renewed MSP.

   $ fabric-ca-client certificate list --id admin --notrevoked --notexpired --url https://ca.org1.example.com:7054 --caname ca-org1 --tls.certfiles tls-root-cert/ca-org1.pem --mspdir admin/msp
   Certificate:
       Data:
           Serial Number: 7AA491352FE32301B2E9B0E38DA16483617A382E
           Issuer: C=US,ST=North Carolina,O=Hyperledger,OU=Fabric,CN=fabric-ca-server
           Validity
               Not Before: Jun 21 10:15:00 2026 UTC
               Not After : Jun 21 10:15:00 2027 UTC
           Subject: C=US,ST=North Carolina,O=Hyperledger,OU=client,CN=admin
   ##### snipped #####

   The lookup may also show earlier unrevoked certificates for the same enrollment ID. The important check is that the renewed serial appears and the command succeeds with the renewed MSP.
