How to configure connection limits in HAProxy

A traffic spike can fill HAProxy connection slots or pin a slow backend before CPU or memory alarms explain the outage. Connection limits set ceilings at the process, listener, and server layers so excess work is queued or rejected instead of letting one frontend or backend consume every available slot.

HAProxy applies maxconn in different places. The global value caps the whole process, a frontend or listen value caps one listener, and a server line value caps work sent to a backend target. In current HAProxy HTTP mode, server maxconn limits concurrent requests unless strict-maxconn is used on HAProxy 3.2 or newer to enforce a hard server-side TCP connection cap.

Pick numbers from measured backend capacity, open-file headroom, queue tolerance, and traffic shape rather than copying one high value into every section. A missing global maxconn can fall back to the process open-file limit, while a server limit that is too low creates HAProxy queues and eventually 503 Service Unavailable responses when timeout queue expires.

1. Choose the HAProxy layer that should enforce each cap.

   Layer	Setting	Scope
   Process	global maxconn	Total active connections handled by the HAProxy process.
   Listener	frontend maxconn or listen maxconn	Connections accepted by one public entry point before new connections wait in the socket queue.
   Backend server	server ... maxconn	Work sent to one backend target before requests or connections queue behind that server.

2. Open the active HAProxy configuration file.

   $ sudoedit /etc/haproxy/haproxy.cfg

3. Add process, listener, queue, and backend server limits.

   global
       maxconn 60000

   defaults
       mode http
       timeout connect 5s
       timeout client 50s
       timeout server 50s
       timeout queue 10s

   frontend fe_web
       bind :80
       maxconn 20000
       default_backend be_web

   backend be_web
       balance roundrobin
       server app01 10.0.10.11:8080 check maxconn 800 strict-maxconn
       server app02 10.0.10.12:8080 check maxconn 800 strict-maxconn

   Remove strict-maxconn on HAProxy packages older than 3.2, or when server maxconn only needs to cap concurrent HTTP requests instead of total server-side TCP connections.

   Do not tune every limit upward at once. A larger process limit may also need a matching service or operating-system open-file limit, while a smaller server limit can turn normal bursts into queues and 503 responses.

   Tool: HAProxy Backend Config Generator

4. Validate the configuration file before reloading HAProxy.

   $ sudo haproxy -c -f /etc/haproxy/haproxy.cfg

   The command exits successfully when HAProxy finds no fatal configuration error. Some packages also print Configuration file is valid.

   Related: How to validate an HAProxy configuration file

5. Reload HAProxy to apply the validated limits.

   $ sudo systemctl reload haproxy

   Related: How to reload HAProxy gracefully

6. Check the active process cap when the runtime socket is enabled.

   $ printf 'show info\n' | sudo socat - /run/haproxy/admin.sock
   Name: HAProxy
   Version: 3.2.9-1ubuntu2.1
   ##### snipped #####
   Maxconn: 8
   Hard_maxconn: 8
   CurrConns: 0
   ##### snipped #####

   The low Maxconn value shown here comes from a staging proof with deliberately small limits. On a production host, Maxconn and Hard_maxconn should match the process limit configured in the global section.

   Related: How to enable the HAProxy runtime socket

7. Hold one request open through a staging listener whose backend server limit is intentionally low.

   $ curl -sS http://127.0.0.1:8080/ > /tmp/haproxy-held-request.txt

   Use a disposable or staging listener for this low-limit test. Do not force artificial 503 responses through a production frontend just to prove the cap.

8. Request the same staging listener from a second terminal.

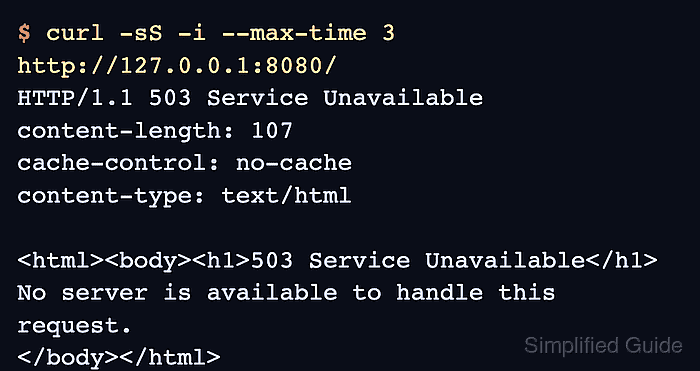

   $ curl -sS -i --max-time 3 http://127.0.0.1:8080/
   HTTP/1.1 503 Service Unavailable
   content-length: 107
   cache-control: no-cache
   content-type: text/html

   <html><body><h1>503 Service Unavailable</h1>
   No server is available to handle this request.
   </body></html>

   The second request is rejected after the held request occupies the only backend slot and timeout queue expires. If the second request waits and then succeeds, another server slot was available or the queue timeout is longer than the client timeout.

9. Confirm the held request completed.

   $ cat /tmp/haproxy-held-request.txt
   slow backend ok

10. Remove the temporary staging output file.

    $ rm /tmp/haproxy-held-request.txt
