How to configure a Logstash syslog output

Forwarding selected Logstash events to a syslog receiver keeps older collectors, SIEM relays, and network appliances in the loop without replacing the existing pipeline. A dedicated syslog output is also useful when the same events must be mirrored into another operations system alongside the primary destination.

The syslog output plugin opens a client connection to a remote collector and formats each event as an RFC 3164 or RFC 5424 message. Current plugin builds require host and port, default to UDP transport and RFC3164 formatting, and also support TCP or ssl-tcp when the receiver expects a stateful or TLS-protected stream.

On Debian and RPM installs, pipeline files with a .conf extension under /etc/logstash/conf.d are loaded into the default main pipeline. Current Logstash releases also default allow_superuser to false, so configuration tests are safest under the logstash service account with a temporary --path.data directory. Use UDP only when occasional loss is acceptable, and switch to TCP or ssl-tcp when the collector must confirm delivery or requires TLS.

Steps to configure a Logstash syslog output:

Confirm the logstash-output-syslog plugin is available.
```
$ sudo /usr/share/logstash/bin/logstash-plugin list --verbose logstash-output-syslog
Using bundled JDK: /usr/share/logstash/jdk
logstash-output-syslog (3.1.0)
```
If the command prints only the bundled JDK line or no matching plugin entry, install the plugin in the next step before testing the pipeline.

Related: How to install Logstash plugins

Install the logstash-output-syslog plugin if it is not already present.

$ sudo /usr/share/logstash/bin/logstash-plugin install logstash-output-syslog
Using bundled JDK: /usr/share/logstash/jdk
Validating logstash-output-syslog
Resolving mixin dependencies
Updating mixin dependencies logstash-mixin-normalize_config_support
Installing logstash-output-syslog
Installation successful

Plugin installation changes the Logstash runtime and takes effect only after the service is restarted, so plan the restart around the maintenance window for the pipeline.

Create a dedicated sample source file so the output can be verified without waiting for production traffic.

$ sudo install -d -o logstash -g logstash -m 0750 /var/lib/logstash/examples
$ sudo install -o logstash -g logstash -m 0640 /dev/null /var/lib/logstash/examples/syslog-output.log

Create a pipeline configuration file at /etc/logstash/conf.d/70-syslog-output.conf.
```
input {
  file {
    path => ["/var/lib/logstash/examples/syslog-output.log"]
    start_position => "end"
    sincedb_path => "/var/lib/logstash/syslog-output-demo.sincedb"
  }
}

output {
  syslog {
    id => "syslog_forwarder"
    host => "syslog.example.net"
    port => 5514
    protocol => "udp"
    rfc => "rfc5424"
    appname => "logstash"
    sourcehost => "loghost01"
    facility => "local0"
    severity => "informational"
  }
}
```
The explicit id makes this output easy to identify in the Logstash monitoring API when the pipeline has multiple outputs. The sourcehost setting keeps the hostname field predictable for downstream syslog parsing and test captures.

If an existing pipeline already produces the events to forward, keep only the syslog output block and add it to that pipeline instead of creating the sample file input.

Switch protocol to tcp or ssl-tcp when the collector requires a connection-oriented stream, and add the relevant SSL settings when TLS is required.

The output block forwards every event from the pipeline unless it is wrapped in conditionals, which can overwhelm a collector if a high-volume pipeline is mirrored without filtering.

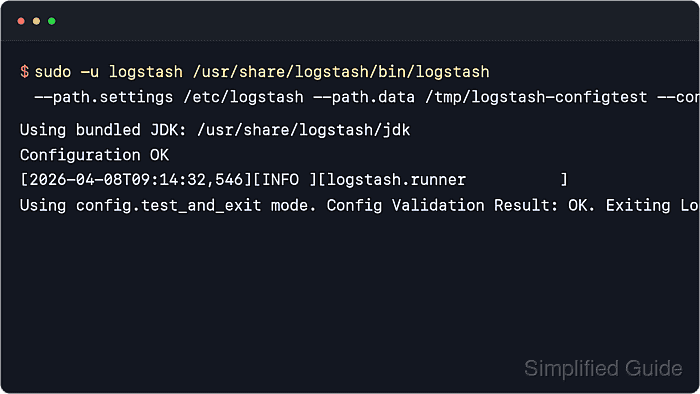

Test the pipeline configuration with the packaged settings directory and a temporary data path.
```
$ sudo -u logstash /usr/share/logstash/bin/logstash --path.settings /etc/logstash --path.data /tmp/logstash-configtest --config.test_and_exit
Using bundled JDK: /usr/share/logstash/jdk
Configuration OK
[2026-04-08T09:14:32,546][INFO ][logstash.runner          ] Using config.test_and_exit mode. Config Validation Result: OK. Exiting Logstash
```
The temporary --path.data directory keeps the syntax check away from the live service state under /var/lib/logstash.

Running the same command as root fails on current releases unless allow_superuser is explicitly enabled in /etc/logstash/logstash.yml.

Related: How to test a Logstash pipeline configuration
Restart the Logstash service to load the updated pipeline.
```
$ sudo systemctl restart logstash
```
Restarting Logstash restarts every active pipeline in the service, which can briefly pause ingestion while inputs and outputs reopen.

Related: How to manage the Logstash service with systemctl in Linux

Confirm the Logstash service is active after the restart.

$ sudo systemctl status logstash --no-pager
● logstash.service - logstash
     Loaded: loaded (/usr/lib/systemd/system/logstash.service; enabled; preset: enabled)
     Active: active (running) since Tue 2026-04-08 09:15:14 UTC; 6s ago
   Main PID: 21844 (java)
      Tasks: 104 (limit: 28486)
     Memory: 1.1G (peak: 1.1G)
        CPU: 32.441s
##### snipped #####

Start a temporary listener on the syslog collector host if shell access is available there.
```
$ sudo nc -klu 5514
```
Run the listener on the receiving host, not on the Logstash host, when the goal is to watch the forwarded datagram directly.

If the collector already runs its own syslog daemon, watch that service log or packet capture instead of replacing it with nc.
Append a new line to the sample source file so the pipeline has an event to forward.
```
$ printf '2026-04-08T09:15:32Z logstash-syslog-test syslog output example\n' | sudo tee -a /var/lib/logstash/examples/syslog-output.log
2026-04-08T09:15:32Z logstash-syslog-test syslog output example
```
Because the file input uses start_position ⇒ “end”, append the test line after the service is already running so Logstash treats it as new input.
Verify the collector receives the forwarded syslog frame.
```
$ sudo nc -klu 5514
<134>1 2026-04-08T09:15:32.000Z loghost01 logstash - - - 2026-04-08T09:15:32Z logstash-syslog-test syslog output example
```
The example priority 134 reflects local0 plus informational. A different facility or severity changes only the priority value at the start of the frame.

If no message arrives, verify the collector host, port, firewall rules, and transport choice first, then check journalctl –unit logstash –since “5 minutes ago” –no-pager for plugin or DNS errors.

Check the output plugin counters in the Logstash monitoring API.

$ curl -s 'http://127.0.0.1:9600/_node/stats/pipelines?filter_path=pipelines.main.plugins.outputs&pretty'
{
  "pipelines" : {
    "main" : {
      "plugins" : {
        "outputs" : [ {
          "id" : "syslog_forwarder",
          "name" : "syslog",
          "events" : {
            "in" : 1,
            "out" : 1,
            "duration_in_millis" : 18
          }
        } ]
      }
    }
  }
}

Current Logstash defaults keep the monitoring API on 127.0.0.1 and choose a port from 9600-9700 unless /etc/logstash/logstash.yml changes api.http.host or api.http.port.
