How to configure Spark fair scheduling

A busy Spark driver can submit multiple jobs from the same SparkContext, especially when a service handles concurrent requests or analysts share one long-running application. Fair scheduling changes the in-application queue from first-in-first-out execution to pool-aware sharing so short interactive actions can receive executor slots while longer batch work is still active.

Spark enables fair scheduling before the driver starts with spark.scheduler.mode=FAIR. Pool definitions can be loaded from an XML allocation file through spark.scheduler.allocation.file, where each pool sets its internal scheduling mode, relative weight, and minimum share.

Jobs enter a pool through the per-thread spark.scheduler.pool local property, not through a cluster-manager queue. A local[4] PySpark smoke run can prove that the allocation file loads and that actions submitted after each local-property assignment use the intended pool names before the same pattern is moved into a long-running service or cluster job.

1. Choose the fair scheduler settings for the application.

   Scheduler mode: FAIR
   Allocation file: /tmp/fairscheduler.xml
   Pools:
     interactive: schedulingMode=FAIR, weight=2, minShare=1
     batch:       schedulingMode=FIFO, weight=1, minShare=0

   Fair scheduling shares resources between jobs inside one SparkContext. It does not replace YARN queues, Kubernetes resource requests, standalone application limits, or dynamic allocation between separate Spark applications.

2. Create the fair scheduler allocation file.

   /tmp/fairscheduler.xml

   <?xml version="1.0"?>
   <allocations>
     <pool name="interactive">
       <schedulingMode>FAIR</schedulingMode>
       <weight>2</weight>
       <minShare>1</minShare>
     </pool>
     <pool name="batch">
       <schedulingMode>FIFO</schedulingMode>
       <weight>1</weight>
       <minShare>0</minShare>
     </pool>
   </allocations>

   Use a path visible to the driver. Spark also accepts HDFS allocation-file URIs such as hdfs:///spark/fairscheduler.xml when the driver can read Hadoop configuration. Pools missing from the XML file use the default values: FIFO, weight 1, and minShare 0.

3. Save a PySpark application that assigns actions to scheduler pools.

   sg_fair_scheduler_check.py

   from pyspark.sql import SparkSession

   spark = SparkSession.builder.getOrCreate()
   spark.sparkContext.setLogLevel("ERROR")

   sc = spark.sparkContext
   print(f"scheduler_mode={sc.getConf().get('spark.scheduler.mode')}")
   print(f"allocation_file={sc.getConf().get('spark.scheduler.allocation.file')}")

   sc.setLocalProperty("spark.scheduler.pool", "interactive")
   interactive_count = spark.range(0, 20).repartition(4).count()
   interactive_pool = sc.getLocalProperty("spark.scheduler.pool")
   print(f"interactive_pool={interactive_pool}")
   print(f"interactive_count={interactive_count}")

   sc.setLocalProperty("spark.scheduler.pool", "batch")
   batch_count = spark.range(0, 10).repartition(2).count()
   batch_pool = sc.getLocalProperty("spark.scheduler.pool")
   print(f"batch_pool={batch_pool}")
   print(f"batch_count={batch_count}")

   sc.setLocalProperty("spark.scheduler.pool", None)
   print(f"cleared_pool={sc.getLocalProperty('spark.scheduler.pool')}")

   spark.stop()
   print("spark_stopped=true")

   The local property affects jobs submitted by the current thread after the assignment. For concurrent PySpark threads, use pyspark.InheritableThread when thread-local Spark properties need to reach the JVM scheduler.

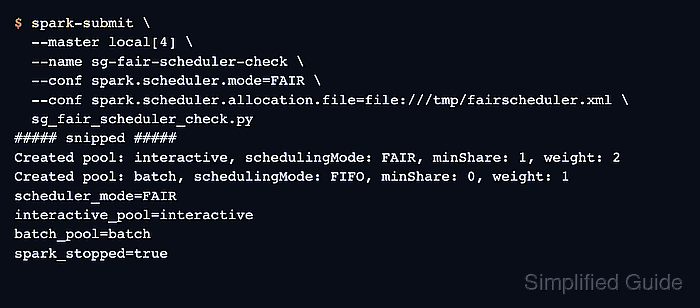

4. Submit the application with fair scheduling enabled.

   $ spark-submit \
     --master local[4] \
     --name sg-fair-scheduler-check \
     --conf spark.scheduler.mode=FAIR \
     --conf spark.scheduler.allocation.file=file:///tmp/fairscheduler.xml \
     --conf spark.ui.showConsoleProgress=false \
     sg_fair_scheduler_check.py
   WARNING: Using incubator modules: jdk.incubator.vector
   Using Spark's default log4j profile: org/apache/spark/log4j2-defaults.properties
   ##### snipped #####
   FairSchedulableBuilder: Created pool: interactive, schedulingMode: FAIR, minShare: 1, weight: 2
   FairSchedulableBuilder: Created pool: batch, schedulingMode: FIFO, minShare: 0, weight: 1
   ##### snipped #####
   scheduler_mode=FAIR
   allocation_file=file:///tmp/fairscheduler.xml
   interactive_pool=interactive
   interactive_count=20
   batch_pool=batch
   batch_count=10
   cleared_pool=None
   spark_stopped=true

   Pass the same properties with spark-submit for a single application, or put them in the active spark-defaults.conf file for recurring submissions.
   Related: How to configure Spark defaults
   Related: How to submit an Apache Spark job

5. Confirm the scheduler mode, allocation file, and pool names in the output.

   The FairSchedulableBuilder lines show that Spark parsed the XML pools. The printed interactive_pool and batch_pool values show that actions were submitted after assigning the matching spark.scheduler.pool local property.

6. Remove the temporary smoke-test files.

   $ rm sg_fair_scheduler_check.py /tmp/fairscheduler.xml

   Keep the allocation file in a durable Spark configuration path instead of removing it when the same pool policy should remain active for future applications.
