How to create a Kubernetes image pull secret

Private container images need registry credentials before a Kubernetes node can pull them for a Pod. An image pull secret stores those credentials as a kubernetes.io/dockerconfigjson Secret, letting the workload reference a registry login without putting the username and token directly in the Pod manifest.

kubectl create secret docker-registry builds the Docker config JSON that the kubelet can use during image pulls. The Secret must live in the same namespace as the Pod, and the --docker-server value must match the registry host in the image reference.

A disposable namespace and a single test Pod keep the check separate from application workloads. Use a pull-only registry token or robot account for the Secret, then verify that the Pod moves past the image pull and starts before copying the pattern into a Deployment or another controller.

1. Create a namespace for the private image test.

   $ kubectl create namespace app-private
   namespace/app-private created

   Use the application namespace instead of app-private when adding a pull Secret to an existing workload.

   Related: How to create a Kubernetes namespace

2. Create the image pull Secret for the private registry.

   $ kubectl create secret docker-registry regcred --namespace app-private --docker-server=registry.example.com --docker-username=registry-user --docker-password='registry-token' --docker-email=ops@example.com
   secret/regcred created

   Use a pull-only token or robot account rather than a personal registry password. Avoid saving real registry credentials in shared shell history, screenshots, or support transcripts.

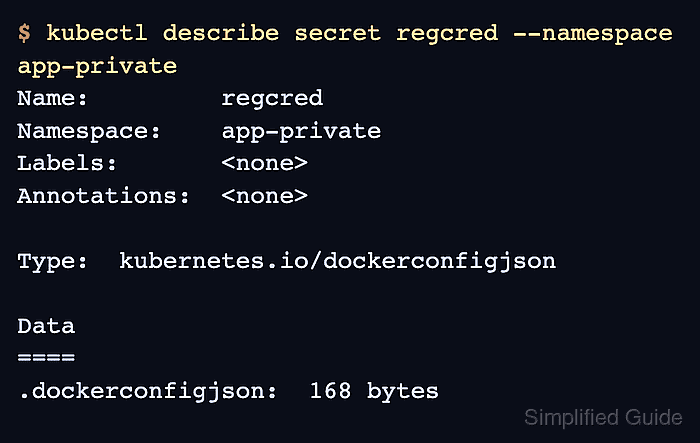

3. Confirm that the Secret has the Docker config type.

   $ kubectl describe secret regcred --namespace app-private
   Name:         regcred
   Namespace:    app-private
   Labels:       <none>
   Annotations:  <none>

   Type:  kubernetes.io/dockerconfigjson

   Data
   ====
   .dockerconfigjson:  168 bytes

4. Create a Pod manifest that references the private image and pull Secret.

   private-image-pod.yaml

   apiVersion: v1
   kind: Pod
   metadata:
     name: private-web
     namespace: app-private
   spec:
     restartPolicy: Never
     imagePullSecrets:
       - name: regcred
     containers:
       - name: private-web
         image: registry.example.com/team/private-web:1.0
         command: ["sh", "-c", "echo private image pull ok; sleep 300"]

   The Secret name under imagePullSecrets must exist in app-private. Use the same field inside a Deployment, Job, CronJob, DaemonSet, or StatefulSet Pod template.

5. Apply the Pod manifest.

   $ kubectl apply -f private-image-pod.yaml
   pod/private-web created

6. Wait for the Pod to become ready.

   $ kubectl wait --for=condition=Ready pod/private-web --namespace app-private --timeout=120s
   pod/private-web condition met

   A Pod that stays in ImagePullBackOff or ErrImagePull usually needs the registry host, Secret namespace, token scope, or image name checked.

7. Check the Pod status.

   $ kubectl get pod private-web --namespace app-private
   NAME          READY   STATUS    RESTARTS   AGE
   private-web   1/1     Running   0          1s

8. Read the container output to confirm the pulled image started.

   $ kubectl logs private-web --namespace app-private
   private image pull ok

9. Inspect the Pod events for a successful image pull.

   $ kubectl describe pod private-web --namespace app-private
   Name:             private-web
   Namespace:        app-private
   Status:           Running
   ##### snipped #####
   Containers:
     private-web:
       Image:         registry.example.com/team/private-web:1.0
       State:         Running
       Ready:         True
   ##### snipped #####
   Events:
     Type    Reason     Age   From     Message
     ----    ------     ----  ----     -------
     Normal  Scheduled  0s    default-scheduler  Successfully assigned app-private/private-web to worker-1
     Normal  Pulling    0s    kubelet  Pulling image "registry.example.com/team/private-web:1.0"
     Normal  Pulled     0s    kubelet  Successfully pulled image "registry.example.com/team/private-web:1.0"
     Normal  Created    0s    kubelet  Container created
     Normal  Started    0s    kubelet  Container started

   If the event reason is FailedToRetrieveImagePullSecret, ErrImagePull, or ImagePullBackOff, inspect the event message before changing the workload.
   Related: How to check Kubernetes events
   Tool: Kubernetes Events Timeline Analyzer

10. Delete the test namespace when the pull check is finished.

    $ kubectl delete namespace app-private
    namespace "app-private" deleted

    Skip this command for a real application namespace. Delete only the test Pod and test Secret if the namespace contains other workloads.
