How to upgrade Hyperledger Fabric chaincode

Upgrading Hyperledger Fabric chaincode replaces the channel's agreed smart contract definition with the next lifecycle sequence. Operators use this process when a contract package changes, when an endorsement policy changes, or when a private data collection definition must move forward on an existing channel.

The Fabric lifecycle does not use a separate upgrade command. Channel organizations approve a new definition for the same chaincode name, increment the sequence by one, and commit that definition after the required lifecycle endorsements are ready. A new package ID is required only when the chaincode binaries change.

The sample values use the fabric-samples test network, mychannel, Org1MSP, Org2MSP, and the JavaScript asset-transfer-basic chaincode as the upgraded package. Replace the channel name, peer addresses, MSP paths, orderer certificate, package label, and smoke-test transaction for a production network.

Steps to upgrade Hyperledger Fabric chaincode with the Fabric lifecycle:

Change to the Fabric test network directory.
```
$ cd fabric-samples/test-network
```
The channel should already have the chaincode committed at the previous sequence before the upgrade starts.
Set the chaincode upgrade values.
```
$ export CHANNEL_NAME=mychannel
$ export CC_NAME=basic
$ export CC_VERSION=2.0
$ export CC_SEQUENCE=2
$ export CC_LABEL=basic_2.0
```
Use the next integer after the currently committed sequence. Every organization approving the upgrade must use the same chaincode name, version, sequence, policy, and collection settings.

Add the Fabric binaries and sample config directory to the current shell.

$ export PATH="$PWD/../bin:$PATH"
$ export FABRIC_CFG_PATH="$PWD/../config"

Check the currently committed chaincode definition.

$ peer lifecycle chaincode querycommitted --channelID "$CHANNEL_NAME" --name "$CC_NAME"
Committed chaincode definition for chaincode 'basic' on channel 'mychannel':
Version: 1.0, Sequence: 1, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [Org1MSP: true, Org2MSP: true]

Install the dependencies for the new JavaScript chaincode package.
```
$ npm --prefix ../asset-transfer-basic/chaincode-javascript install
up to date, audited 361 packages in 5s
##### snipped #####
```
Use the dependency command that matches the chaincode language being packaged. A policy-only upgrade can skip packaging and installation, but it still needs the next sequence.

Package the upgraded chaincode.

$ peer lifecycle chaincode package basic_2.tar.gz \
  --path ../asset-transfer-basic/chaincode-javascript/ \
  --lang node \
  --label "$CC_LABEL"

Calculate the package ID for the new package.

$ peer lifecycle chaincode calculatepackageid basic_2.tar.gz
basic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14

Save the new package ID.
```
$ export NEW_CC_PACKAGE_ID=basic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14
```
Do not copy the sample package ID into another network. The hash changes when the package content or label changes.

Set the Org1 admin environment.

$ export CORE_PEER_TLS_ENABLED=true
$ export CORE_PEER_LOCALMSPID=Org1MSP
$ export CORE_PEER_MSPCONFIGPATH="$PWD/organizations/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp"
$ export CORE_PEER_TLS_ROOTCERT_FILE="$PWD/organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
$ export CORE_PEER_ADDRESS=localhost:7051
$ export ORDERER_CA="$PWD/organizations/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem"
$ export ORG1_TLS_ROOTCERT="$PWD/organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt"
$ export ORG2_TLS_ROOTCERT="$PWD/organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt"

Install the upgraded package on the Org1 peer.

$ peer lifecycle chaincode install basic_2.tar.gz
2026-06-21 06:12:11.441 UTC [chaincodeCmd] install -> INFO 001 Installed remotely: response:<status:200 payload:"\nbasic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14\022\tbasic_2.0" >
2026-06-21 06:12:11.441 UTC [chaincodeCmd] install -> INFO 002 Chaincode code package identifier: basic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14

Confirm that Org1 can see the old and new packages.

$ peer lifecycle chaincode queryinstalled
Installed chaincodes on peer:
Package ID: basic_1.0:8f65c6a2d4b1d8e6a4f9c1e0a77b5ed22a9569e8a1a4cf2d5bf2d1a29128a928, Label: basic_1.0
Package ID: basic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14, Label: basic_2.0

Approve the upgraded chaincode definition for Org1.

$ peer lifecycle chaincode approveformyorg \
  -o localhost:7050 \
  --ordererTLSHostnameOverride orderer.example.com \
  --channelID "$CHANNEL_NAME" \
  --name "$CC_NAME" \
  --version "$CC_VERSION" \
  --package-id "$NEW_CC_PACKAGE_ID" \
  --sequence "$CC_SEQUENCE" \
  --tls \
  --cafile "$ORDERER_CA"
2026-06-21 06:13:02.508 UTC [chaincodeCmd] ClientWait -> INFO 001 txid [6f859e4deffb6e4c940e8dbb4c94ab86ae9be7f9e5bcf8042ff07aeff5d9f611] committed with status (VALID) at localhost:7051

Set the Org2 admin environment.

$ export CORE_PEER_LOCALMSPID=Org2MSP
$ export CORE_PEER_MSPCONFIGPATH="$PWD/organizations/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp"
$ export CORE_PEER_TLS_ROOTCERT_FILE="$ORG2_TLS_ROOTCERT"
$ export CORE_PEER_ADDRESS=localhost:9051

Install the upgraded package on the Org2 peer.

$ peer lifecycle chaincode install basic_2.tar.gz
2026-06-21 06:13:38.729 UTC [chaincodeCmd] install -> INFO 001 Installed remotely: response:<status:200 payload:"\nbasic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14\022\tbasic_2.0" >
2026-06-21 06:13:38.729 UTC [chaincodeCmd] install -> INFO 002 Chaincode code package identifier: basic_2.0:4ffe6089ad9b3f0a3f352a7af0270f3363cf4157cd1b86807931dc27d6b1fe14

Install the new package on every peer that must endorse transactions with the upgraded chaincode.

Approve the upgraded chaincode definition for Org2.

$ peer lifecycle chaincode approveformyorg \
  -o localhost:7050 \
  --ordererTLSHostnameOverride orderer.example.com \
  --channelID "$CHANNEL_NAME" \
  --name "$CC_NAME" \
  --version "$CC_VERSION" \
  --package-id "$NEW_CC_PACKAGE_ID" \
  --sequence "$CC_SEQUENCE" \
  --tls \
  --cafile "$ORDERER_CA"
2026-06-21 06:14:04.184 UTC [chaincodeCmd] ClientWait -> INFO 001 txid [f0c3760c54301f0abe72a734f6bd52f719326760d538593480624b79db650489] committed with status (VALID) at localhost:9051

Check whether the channel is ready to commit the upgraded definition.

$ peer lifecycle chaincode checkcommitreadiness \
  --channelID "$CHANNEL_NAME" \
  --name "$CC_NAME" \
  --version "$CC_VERSION" \
  --sequence "$CC_SEQUENCE" \
  --tls \
  --cafile "$ORDERER_CA" \
  --output json
{
        "approvals": {
                "Org1MSP": true,
                "Org2MSP": true
        }
}

A false approval means at least one organization has not approved the same lifecycle definition. Fix the mismatch before committing the upgrade.

Commit the upgraded chaincode definition to the channel.

$ peer lifecycle chaincode commit \
  -o localhost:7050 \
  --ordererTLSHostnameOverride orderer.example.com \
  --channelID "$CHANNEL_NAME" \
  --name "$CC_NAME" \
  --version "$CC_VERSION" \
  --sequence "$CC_SEQUENCE" \
  --tls \
  --cafile "$ORDERER_CA" \
  --peerAddresses localhost:7051 \
  --tlsRootCertFiles "$ORG1_TLS_ROOTCERT" \
  --peerAddresses localhost:9051 \
  --tlsRootCertFiles "$ORG2_TLS_ROOTCERT"
2026-06-21 06:14:37.622 UTC [chaincodeCmd] ClientWait -> INFO 001 txid [95669c4a95b05ccfa808cc7247483d98df99bdb61d46b2cb04260a36a32993f0] committed with status (VALID) at localhost:7051
2026-06-21 06:14:37.623 UTC [chaincodeCmd] ClientWait -> INFO 002 txid [95669c4a95b05ccfa808cc7247483d98df99bdb61d46b2cb04260a36a32993f0] committed with status (VALID) at localhost:9051

The previous chaincode definition stays active until this commit succeeds.

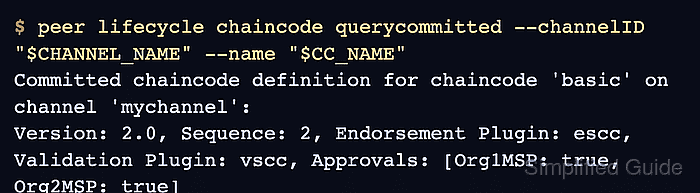

Query the committed definition after the upgrade.

$ peer lifecycle chaincode querycommitted --channelID "$CHANNEL_NAME" --name "$CC_NAME"
Committed chaincode definition for chaincode 'basic' on channel 'mychannel':
Version: 2.0, Sequence: 2, Endorsement Plugin: escc, Validation Plugin: vscc, Approvals: [Org1MSP: true, Org2MSP: true]

Invoke a smoke transaction through the upgraded chaincode.

$ peer chaincode invoke \
  -o localhost:7050 \
  --ordererTLSHostnameOverride orderer.example.com \
  --tls \
  --cafile "$ORDERER_CA" \
  -C "$CHANNEL_NAME" \
  -n "$CC_NAME" \
  --peerAddresses localhost:7051 \
  --tlsRootCertFiles "$ORG1_TLS_ROOTCERT" \
  --peerAddresses localhost:9051 \
  --tlsRootCertFiles "$ORG2_TLS_ROOTCERT" \
  -c '{"function":"CreateAsset","Args":["asset-upgrade-1","green","10","Amina","750"]}'
2026-06-21 06:15:18.956 UTC [chaincodeCmd] chaincodeInvokeOrQuery -> INFO 001 Chaincode invoke successful. result: status:200

Use a contract method that belongs to the upgraded release. If the upgraded definition uses --init-required, invoke the chaincode init function before normal transactions.
Related: How to invoke Hyperledger Fabric chaincode

Query the smoke-test asset from the ledger.
```
$ peer chaincode query -C "$CHANNEL_NAME" -n "$CC_NAME" -c '{"Args":["ReadAsset","asset-upgrade-1"]}'
{"ID":"asset-upgrade-1","color":"green","size":10,"owner":"Amina","appraisedValue":750}
```
The query confirms that the committed definition can run the upgraded chaincode and read the state written after the upgrade.
Related: How to query Hyperledger Fabric chaincode
